Front Brake Kit – Part No: 140-11738-d
Call (805) 388-1188

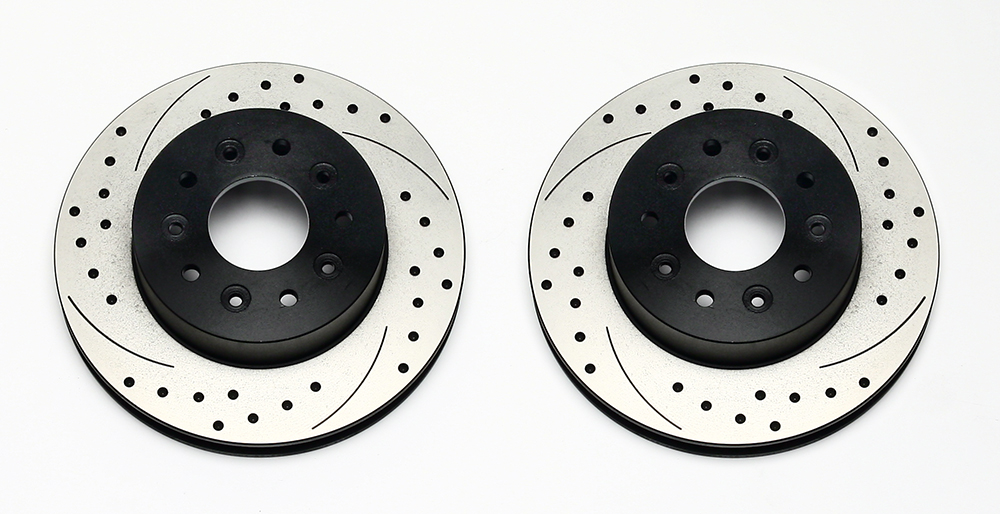

Promatrix Front Replacement Rotor Kit
Prod #: 140-11738-D
Price: $219.00

*NOTE: Brake Line Kit Needed.
Front Brake Kit — 140-11738-d

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

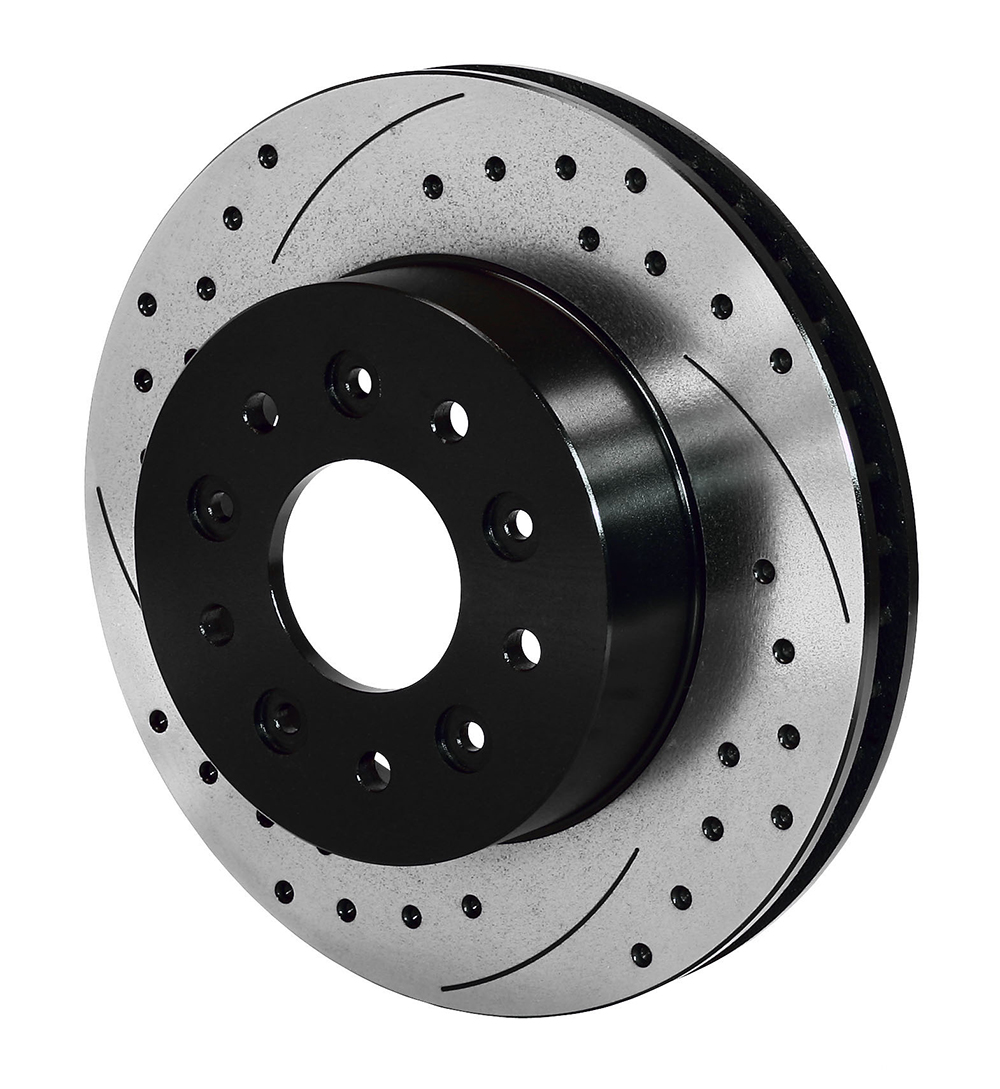

Promatrix Front Replacement Rotor Kit

ProMatrix Front and Rear Rotor Kits offer offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. One-piece directional vane GT rotor kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance, durability, and firmer response with reduced deflection under load.


Fitment & Installation Details

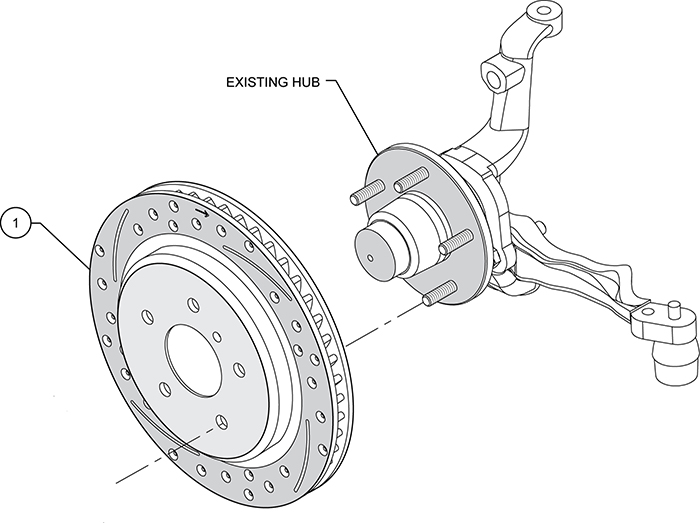

Promatrix Front Replacement Rotor Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Promatrix Front Replacement Rotor Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate:
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound:
Rotors
Left Hand - Part No: 160-11285-BK
Right Hand - Part No: 160-11286-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11.75
Width (in): 1.25
Vane Count: Vented
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit:
Replacement Dustboot:
Replacement Piston 1:
Replacement Piston 2:
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit:
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand:
Wear Plate - Right Hand:
Pad Retainer:
Bleed Screw Kit:
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:
