Front Brake Kit – Part No: 140-12724
Call (805) 388-1188
Forged Dynalite Pro Series Front Brake Kit
Prod #: 140-12724
Price: $1,098.99

*NOTE: Brake Line Kit Needed.
220-12168 $83.26
Front Brake Kit — 140-12724

Kit Summary
OE Hub Offset: +0.92
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

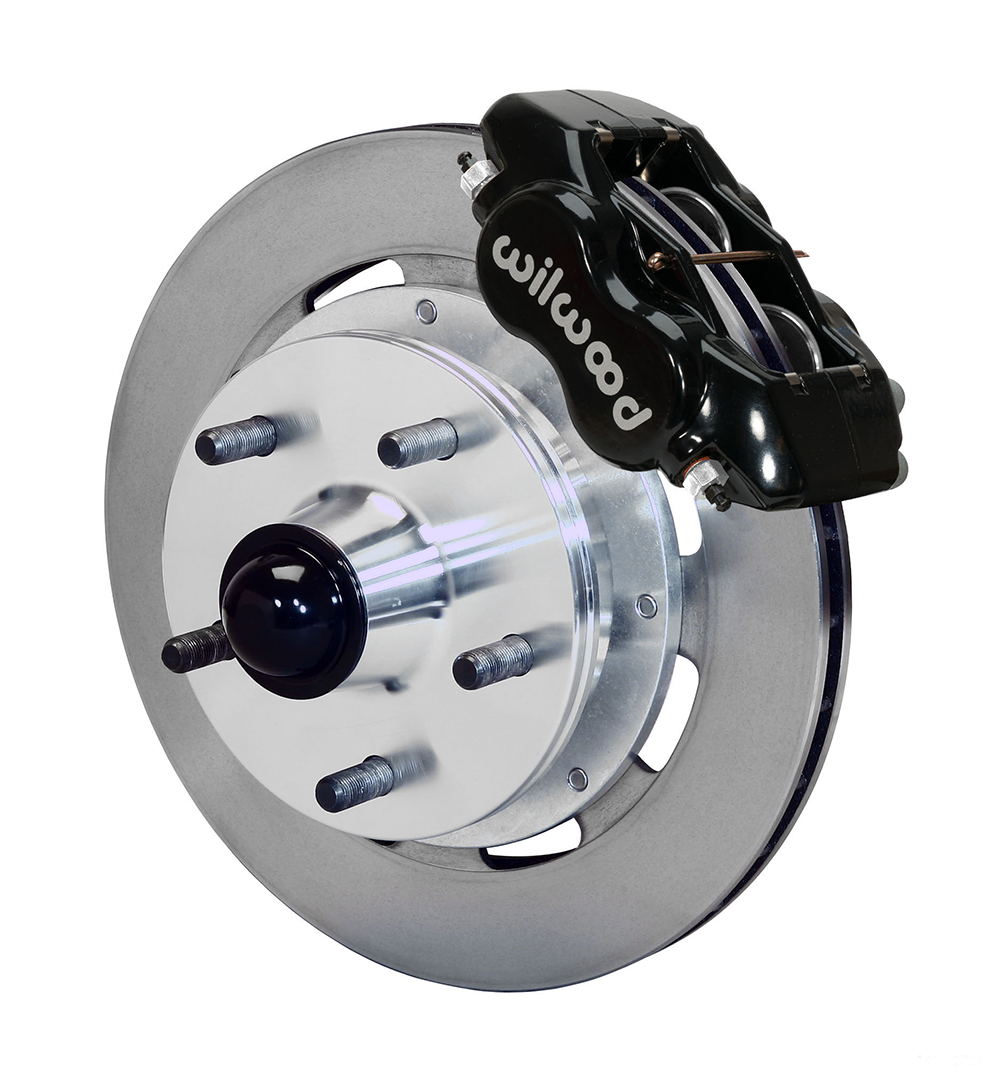

Forged Dynalite Pro Series Front Brake Kit

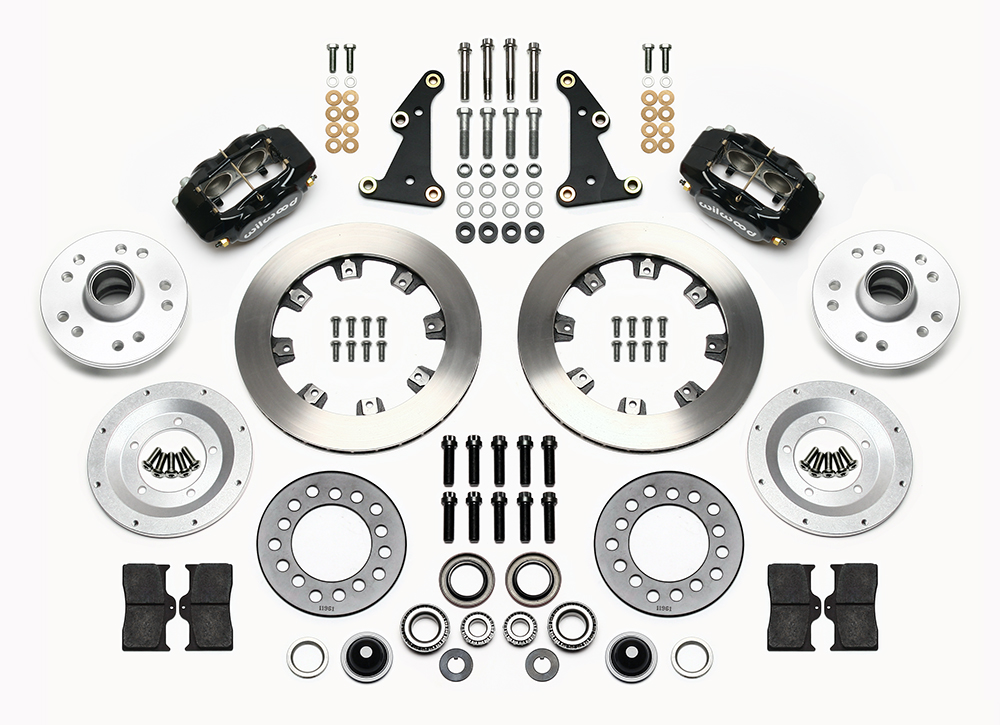

Wilwood's Pro-Series Classic Front Hub Kits for Packard (Junior Series) vehicles from 1942 to 1956, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring an 11.75" x 0.81” rotor and aluminum hub assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series Classic kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and, hub assembly, brackets and hardware. Line kits vary by application and will require an additional purchase.


Fitment & Installation Details

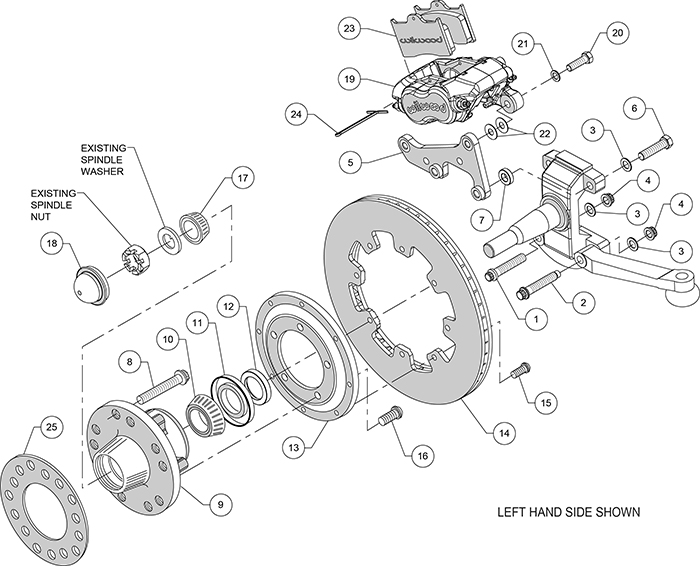

Forged Dynalite Pro Series Front Brake Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Pro Series Front Brake Kit
SPINDLE TYPE:
Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Packard

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF: +0.92
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

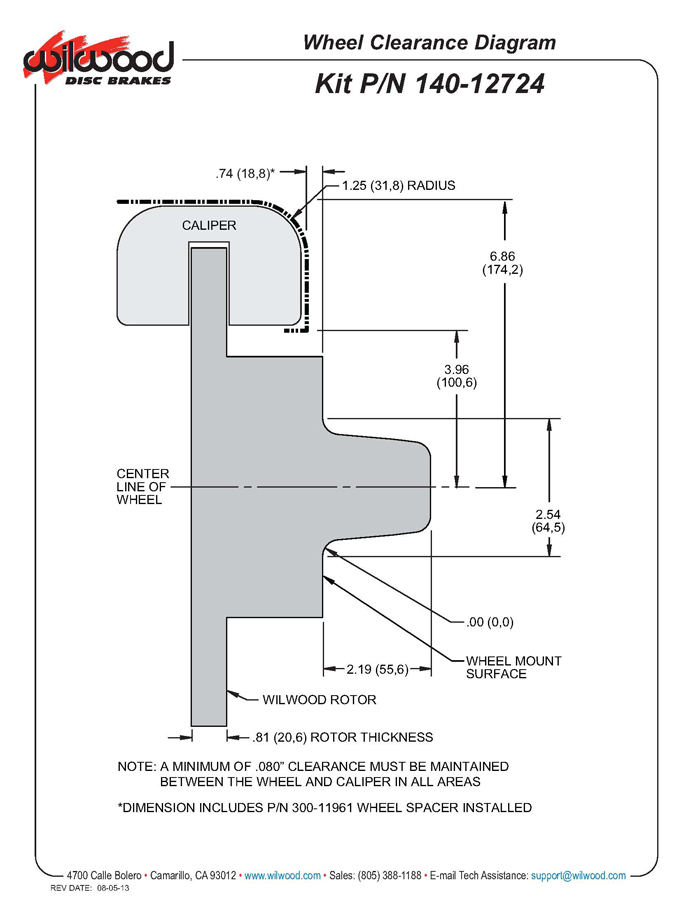

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13844-BK
Right Hand - Part No: 120-13844-BK
Type: Forged Dynalite Internal
Finish Color: Black Powder Coat
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-5841
Right Hand - Part No: 160-5841
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.75
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-12730
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-12168
Hat
Bolt Kit:
Hub
Bolt Kit:
