Forged Dynalite Big Brake Front Brake Kit (Race)
Prod #: 140-14316
Price: $1,174.60

*NOTE: Brake Line Kit 220-11751 is included in this Brake Kit.
Front Brake Kit — 140-14316

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Black Anodize
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

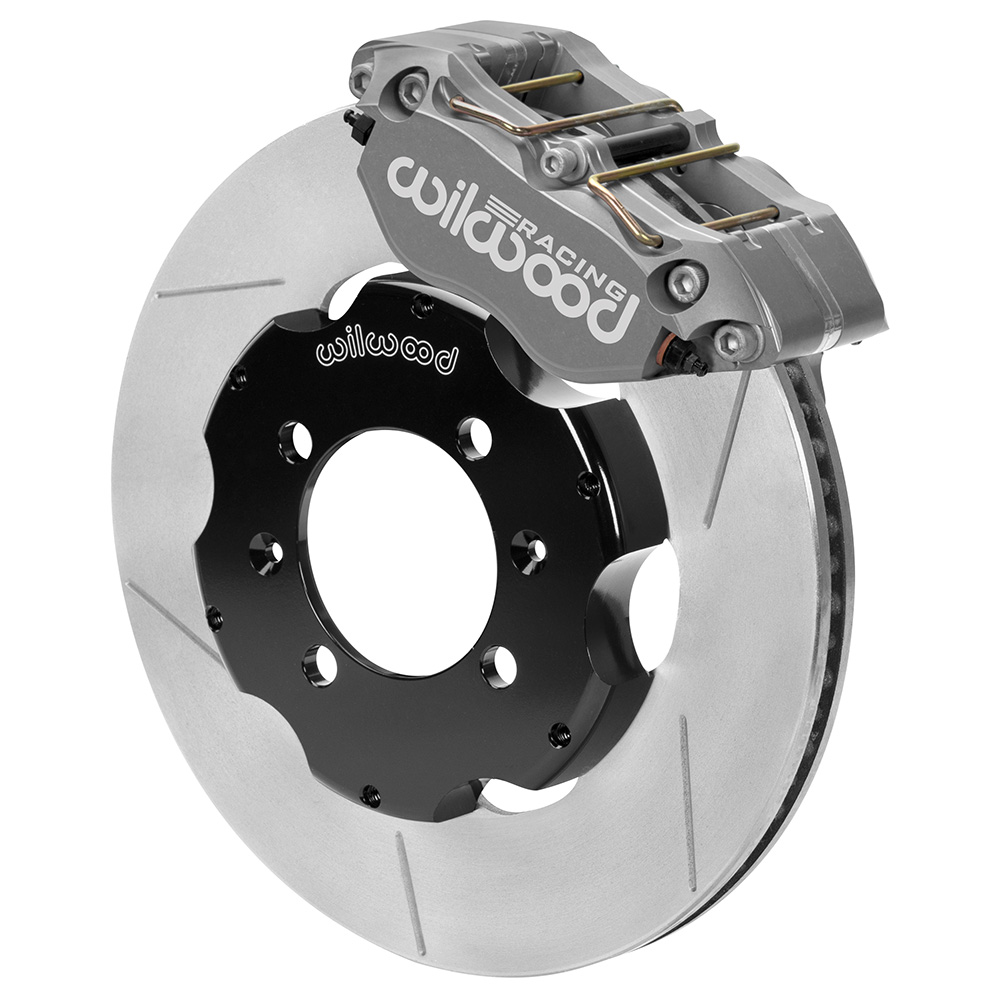

Forged Dynalite Big Brake Front Brake Kit (Race)

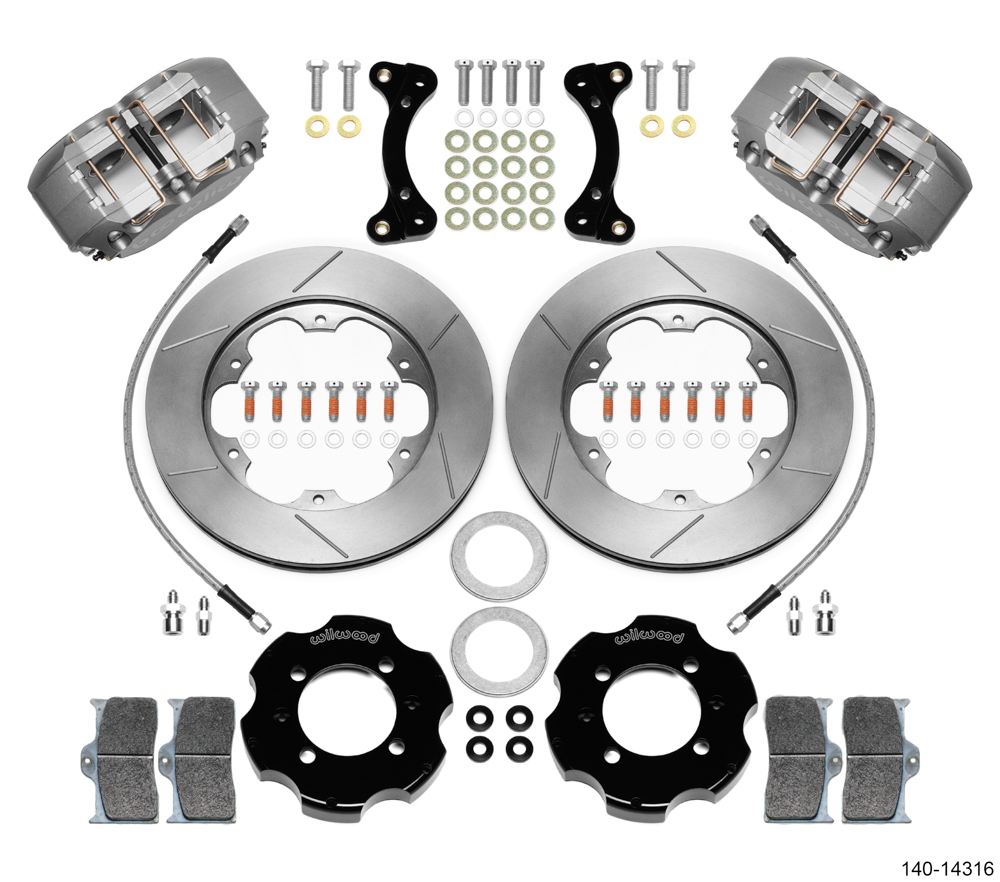

The components in this kit have been selected to deliver consistent start to finish performance on vehicles built for dedicated road course competition. No detail has been overlooked. Forged aluminum Dynalite-ST calipers, fortified with Thermlock® pistons and internal knock-back damping springs, provide high efficiency clamping force, unsurpassed heat management, and the piston retraction control that all contribute to a firm and consistent pedal through any event. Oversized 11" diameter Spec37 alloy GT series 72 vane two-piece rotor assemblies mount to the OE hub with aluminum hats adding overall system brake leverage, cooling capacity, and thermal stability in this compact yet sturdy weight saving configuration. The performance package is capped with high friction, high temperature, and long wearing Wilwood PolyMatrix H compound race pads. All premium grade fastener kits include rotor bolts and caliper to mount bracket bolts that are pre-drilled for safety lock wire.

Wilwood's 1999 Mazda Miata ChampCar Endurance Series Race Car Preview

Fitment & Installation Details

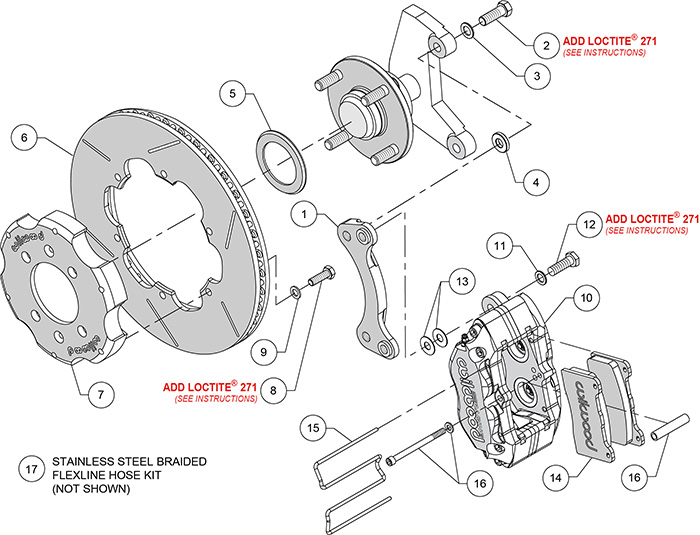

Forged Dynalite Big Brake Front Brake Kit (Race) Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Mazda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle

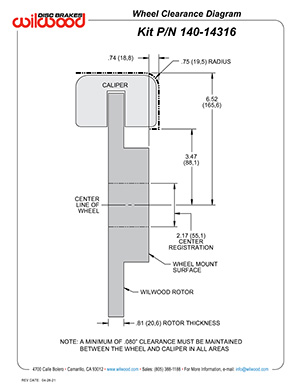

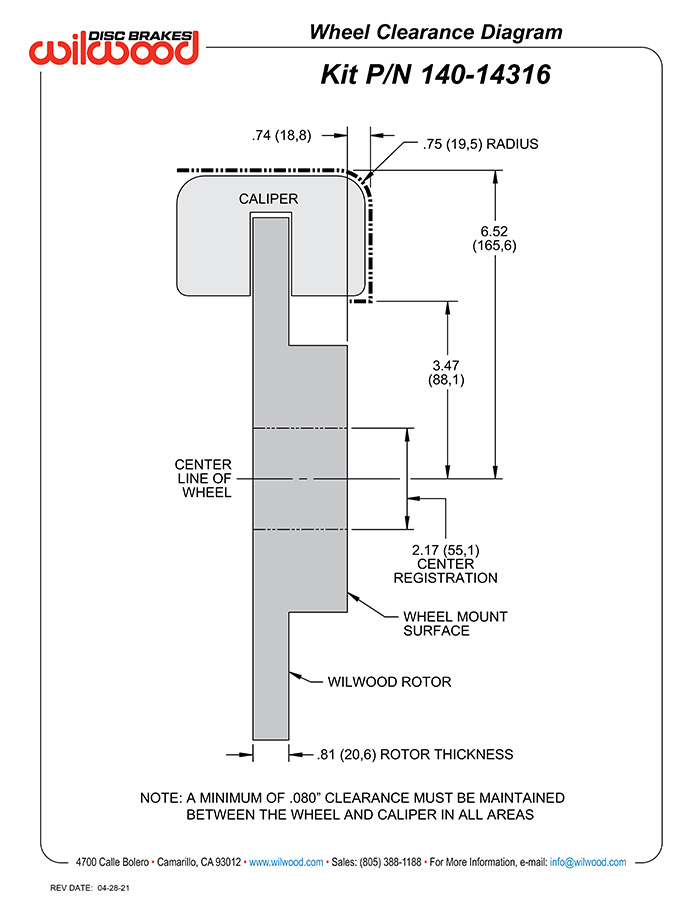

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. This kit has been verified for fitment in select 15 x 7" racing wheels designed for oversized brake packages. Interference may occur with wheels designed for OE spec brake components.
3. Calipers in this kit have been selected for use with the OE power brakes. Contact tech support for optional caliper piston sizes and master cylinder recommendations if using a manual conversion.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14312
Right Hand - Part No: 120-14312

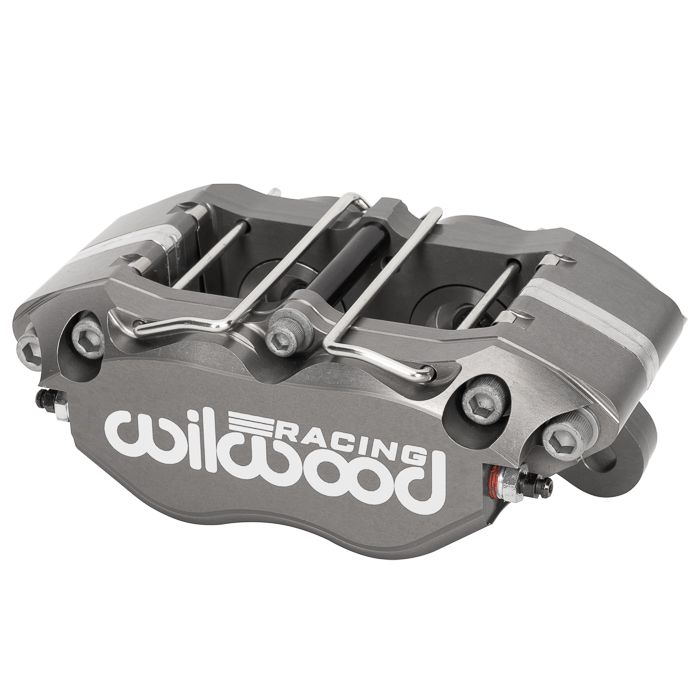

Type: Forged Dynalite-ST
Finish Color: Type III Ano
Piston Count: 4
Piston Area (In²): 3.00
Piston Type: Thermlock
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: PolyMatrix H
Rotors
Left Hand - Part No: 160-12892
Right Hand - Part No: 160-12892
Type: GT 72 Straight Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 72 V
Design Type: GT
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-11682
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.75
Bolt Circle 1: 4 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.5
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-9616
Replacement Piston 2: 200-9616
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-11751
Hat
Bolt Kit: 230-8991
Hub
Bolt Kit:
