Rear Brake Kit – Part No: 140-11774
Call (805) 388-1188

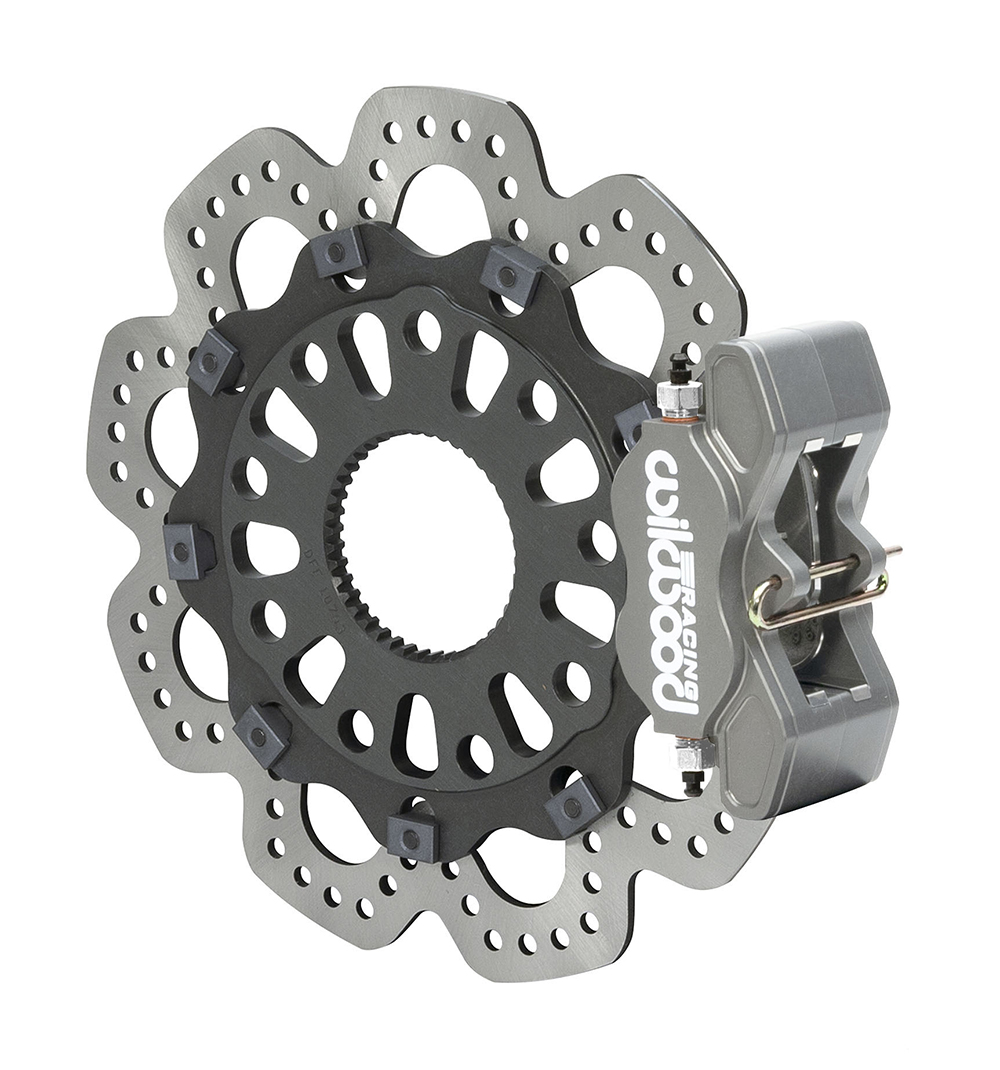

GP320 Sprint Right Rear Brake Kit
Prod #: 140-11774
Price: $529.45

*NOTE: Brake Line Kit Needed.
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: OEM
Axle Offset: 0
Mount Type: Lug
Caliper Type: 4 - Black Anodize
Rotor Diameter: 10.5
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

GP320 Sprint Right Rear Brake Kit

Wilwood’s GP320 Sprint Right Rear Brake kit offers increased braking torque and thermal performance of the GP320 4 piston calipers. A definitive increase in braking and durability over traditional aluminum rotor systems. Kit includes 10.50 x 0.19” Super Alloy steel rotor, Composition Metallic brake pads, lightweight aluminum dynamic mount splined rotor adapter and T-nut hardware kit.


Fitment & Installation Details

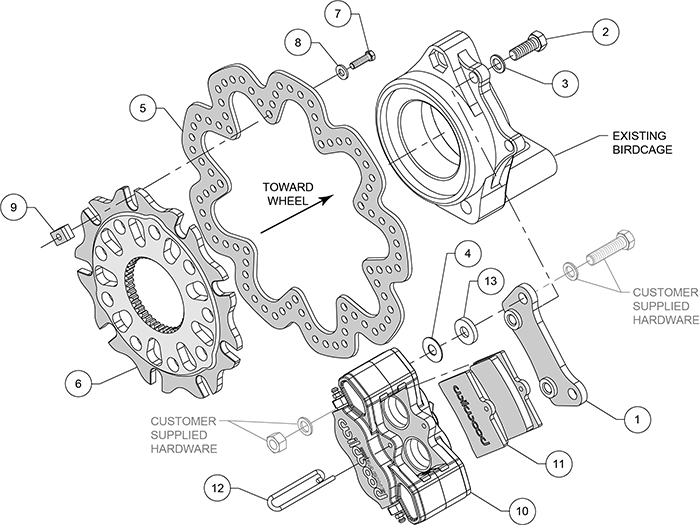

GP320 Sprint Right Rear Brake Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   GP320 Sprint Right Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-8524
Right Hand - Part No:
Type: GP320
Finish Color: Black Anodize
Piston Count: 4
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6211
Brake Pad Area (In²): 3.65
Brake Pad Volume (In³): 1.03
Pad Compound: CM - Composite Metallic
Rotors
Left Hand - Part No: 160-10717
Right Hand - Part No:
Type: Super Alloy
Style: Drilled
Surface Finish: Plain
Material: Super Alloy
Outside Diameter (in): 10.5
Width (in): 0.16
Vane Count: Solid
Design Type: Alloy Scalloped
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-3602
Replacement Dustboot: N-A
Replacement Piston 1: 200-8488
Replacement Piston 2: 200-8488
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: 180-3861
Bleed Screw Kit: 220-7496
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:
