Rear Brake Kit – Part No: 140-12468-d
Call (805) 388-1188

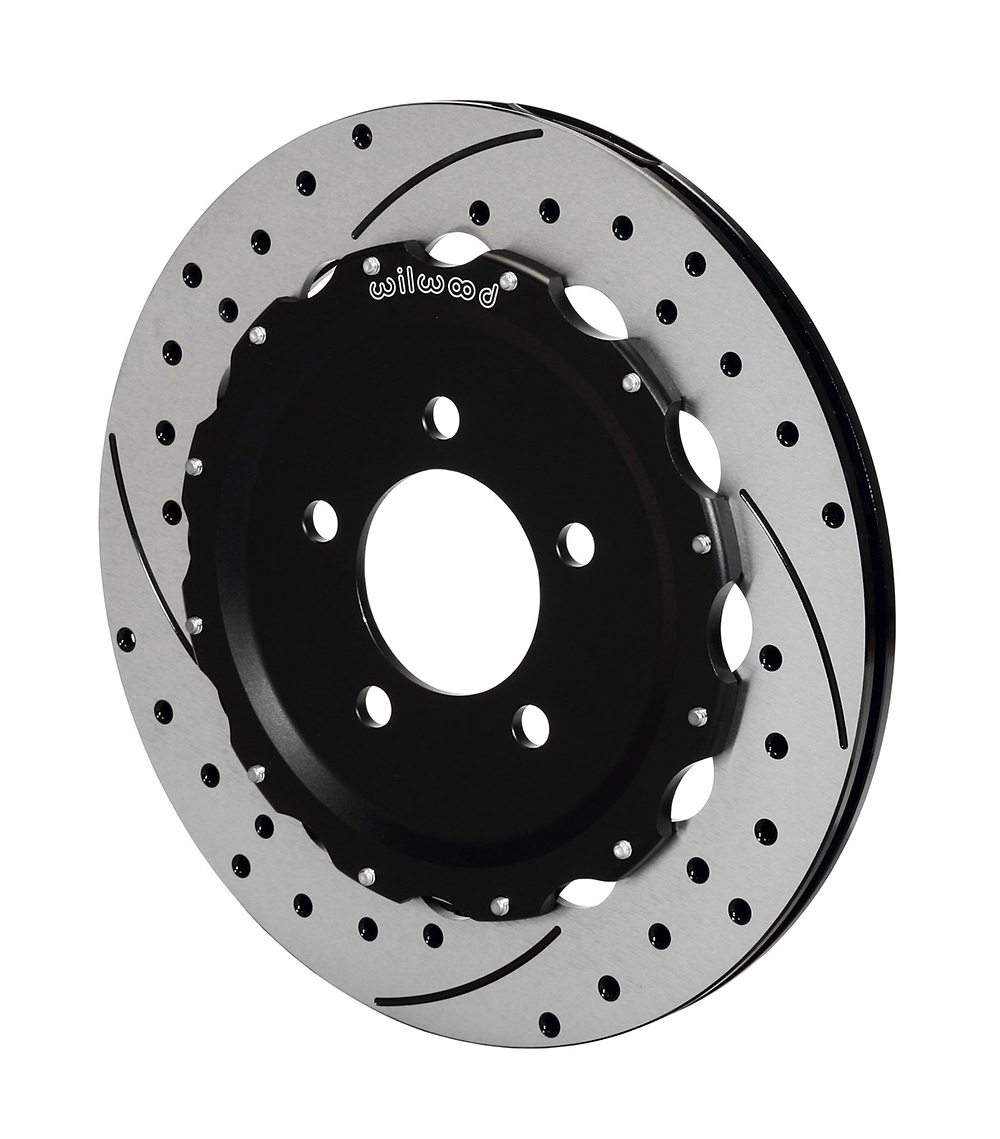

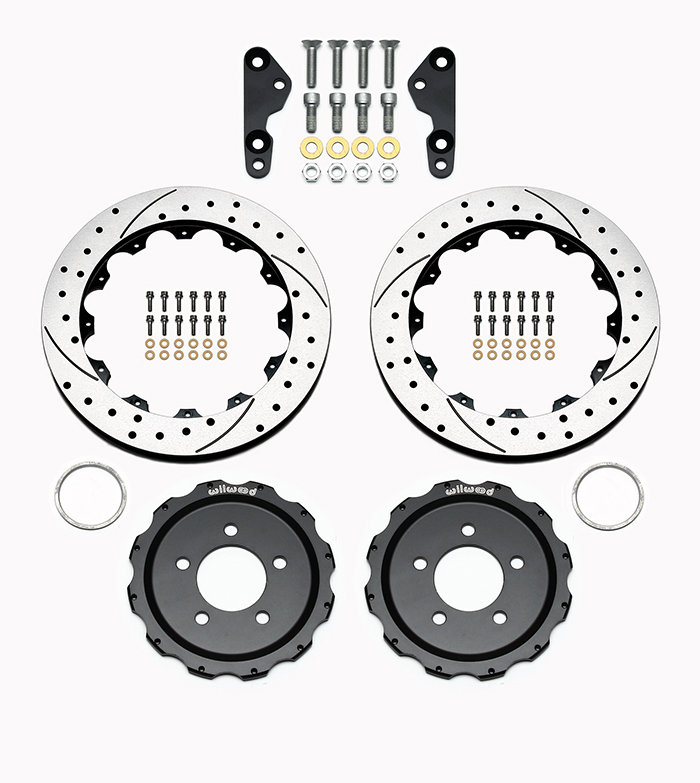

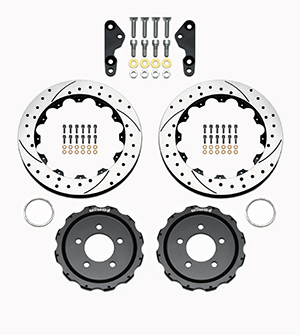

Promatrix Rear Replacement Rotor Kit
Prod #: 140-12468-D
Price: $902.66

*NOTE: Brake Line Kit Needed.
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: OEM
Axle Offset: 0
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Promatrix Rear Replacement Rotor Kit

ProMatrix Rotor& Caliper Relocation upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High strength aluminum relocation brackets increase caliper torque radius .Two -piece directional vane SRP rotors kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance, durability, and firmer response with reduced deflection under load.


Fitment & Installation Details

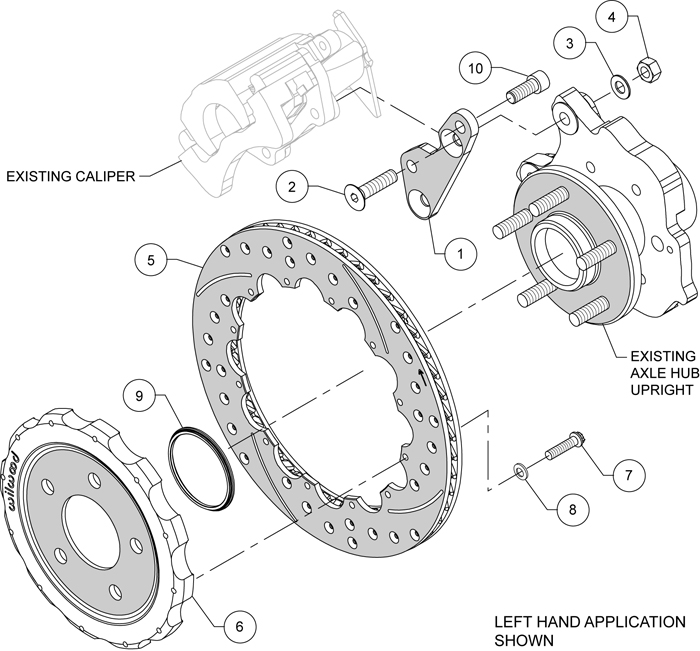

Promatrix Rear Replacement Rotor Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Promatrix Rear Replacement Rotor Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
