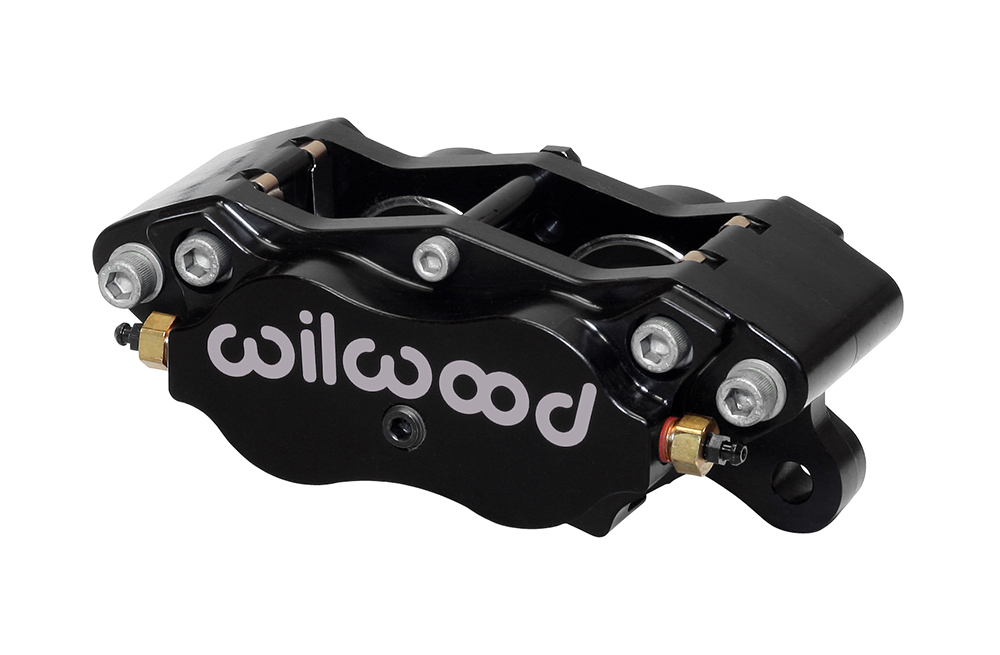

Billet Dynalite - Side Inlet

The Billet Dynalite caliper is powerful, compact and super lightweight. Advanced computer engineering keeps this caliper extremely rigid, resulting in incredible brake torque at a bare minimum in weight, starting at 2.66 pounds. Internal fluid crossover eliminates external tubes and the four position, two-piece bleed screws allow for convenient mounting and easy bleeding. The Billet Dynalite uses standard quick change Dynalite pads, deep cup stainless steel pistons and high temperature seals, and has a black anodized finish. The time proven Dynalite caliper design is stronger and lighter than ever - ideal for Late Models, Modifieds, Sprints, Road Racers and Dragsters.

Our Billet Styled Polished Dynalite incorporates all the performance you need in the most elegant package available. Designed for Street Rod, Pro Series and Show Car applications, this polished billet caliper best utilizes the machining versatility of CNC equipment to sculpt a part that enhances wheel and suspension detail. Caliper housing design and piston selection results in a rigid caliper that virtually eliminates spongy pedal problems. The Billet Styled Polished Dynalite is available for .38”, .50”, .81”, 1.00” and 1.25” rotor applications and has multiple bleeders for left, right, front or rear mounting. These calipers will add the finishing touch to your wheel and suspension package and are guaranteed to catch the eye of even the most discriminating enthusiast

Wilwood’s unique Thermlock® T1 Short Track Piston is an optional feature on our Billet Dynalite calipers.
