MasterCylinder No: 260-11098

Call (805) 388-1188
Reservoir Kit
Prod #: 260-11098
Price: $25.43

Master Cylinder Dimensions
Bore Size N-A
Area (in²) 0
Stroke 0
Volume (cu in)
Master Cylinder Description
Type
Outlets 0
Material Plastic
Finish
Reservoir
Res Type Remote
Res Size (oz) 7.0
Res Size(cu in) 12.6
Rate
Product Documents
Product Data Sheet


Click To Download

Reservoir Kit - Product Summary

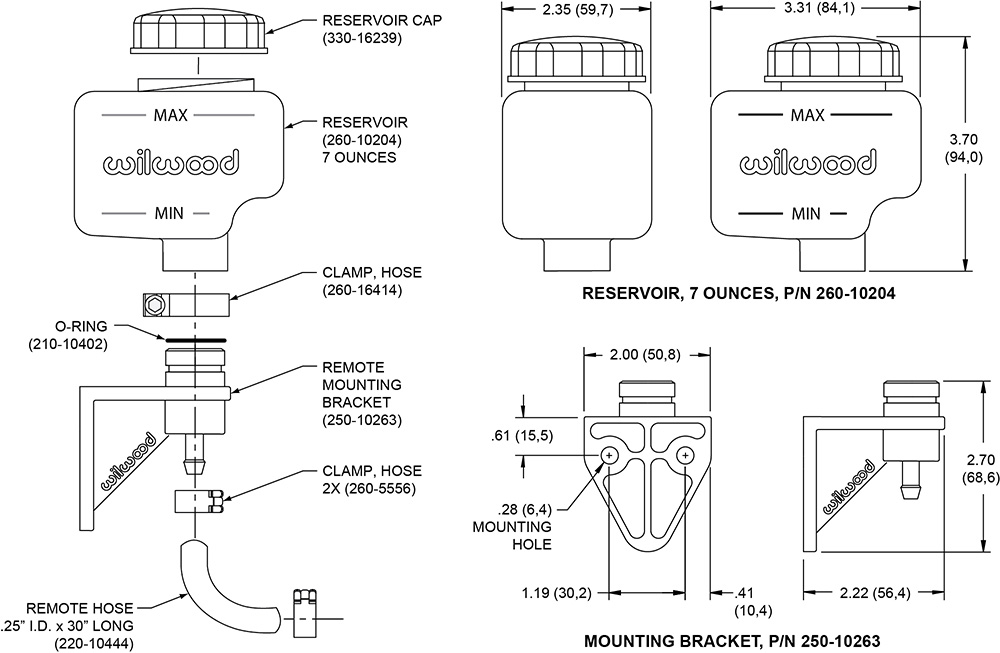

7.0 oz. remote reservoir kit for TM1 Master Cylinder. Contains: 30 inches 1/4" ID hose. Also contains 1 reservoir, 1 reservoir cap and 1 bracket for reservoir mount. 2 kits are required for 1 TM1 master cylinder assembly. Fluid supply hose is a specially designed for brake fluid use and will not swell or leak like other commonly used materials.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in)
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
