Pedal No: 340-1290

Call (805) 388-1188

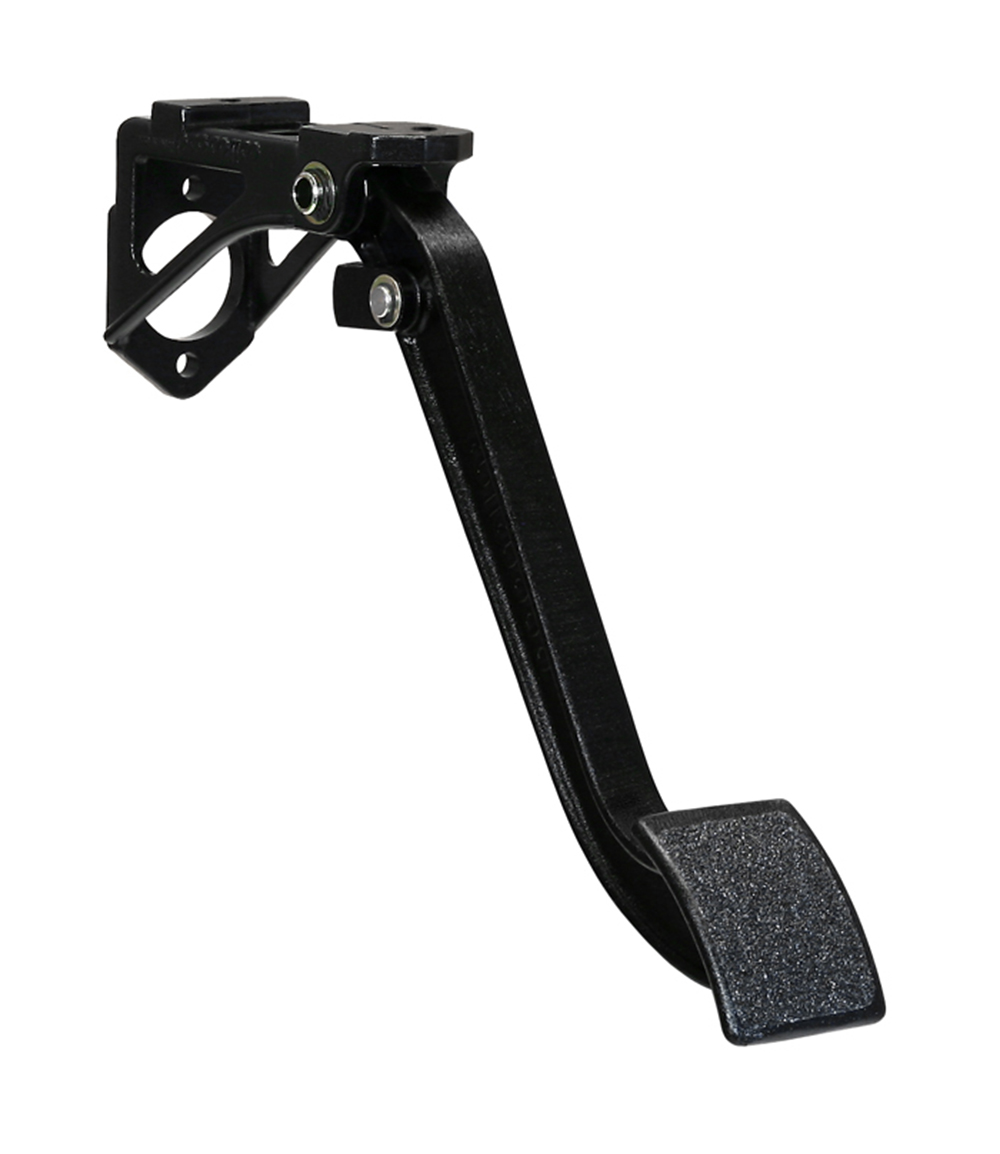

Swing Mount Clutch / Brake Pedal
Prod #: 340-1290
Price: $79.29

Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Swing
Mount Facing Forward
Balance Bar No
Mount Length (in) 12.65
Pedal Ratio & Length
Pedal 1 Ratio 7.0 to 1
Pedal 2 Ratio
Pedal 1 Length (in) 11.86
Pedal 2 Length (in)
Product Documents



Swing Mount Clutch / Brake Pedal - Product Description

This pedal is often used as a clutch pedal with a single outlet master cylinder, or as a brake pedal in conjunction with dual outlet, tandem master cylinders on four wheel brake equipped vehicles. The pedal features all aluminum frame and arm construction with steel pivots, mounting studs, and an anti-skid pedal pad. Swing mount mount with a 7.00 to 1 pedal ratio.

Caution: To use this pedal with a horizontal mount flange tandem outlet master cylinder, order adapter kit part number 250-3677.

Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications

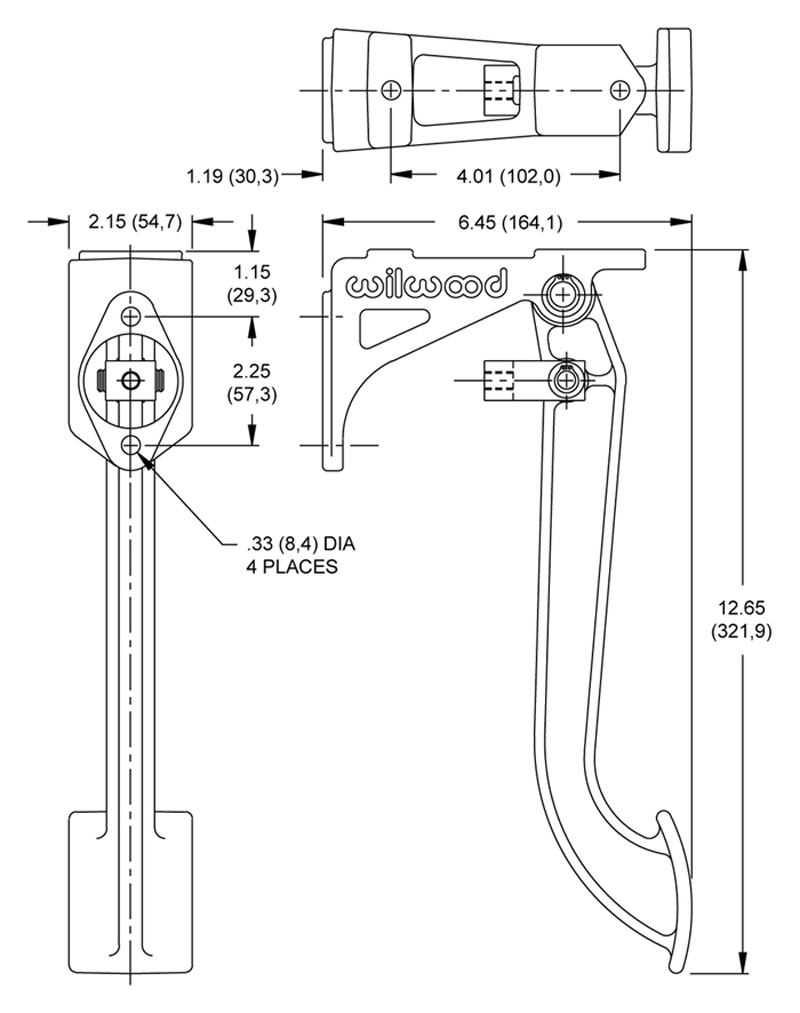

Pedal Dimensions

Additional Pedal Dimensions
Mount Length (in) 12.65
Pedal 1 Length (in) 11.86
Pedal 2 Length (in)
Additional Notes

*
