Pedal No: 340-3342


Call (805) 388-1188

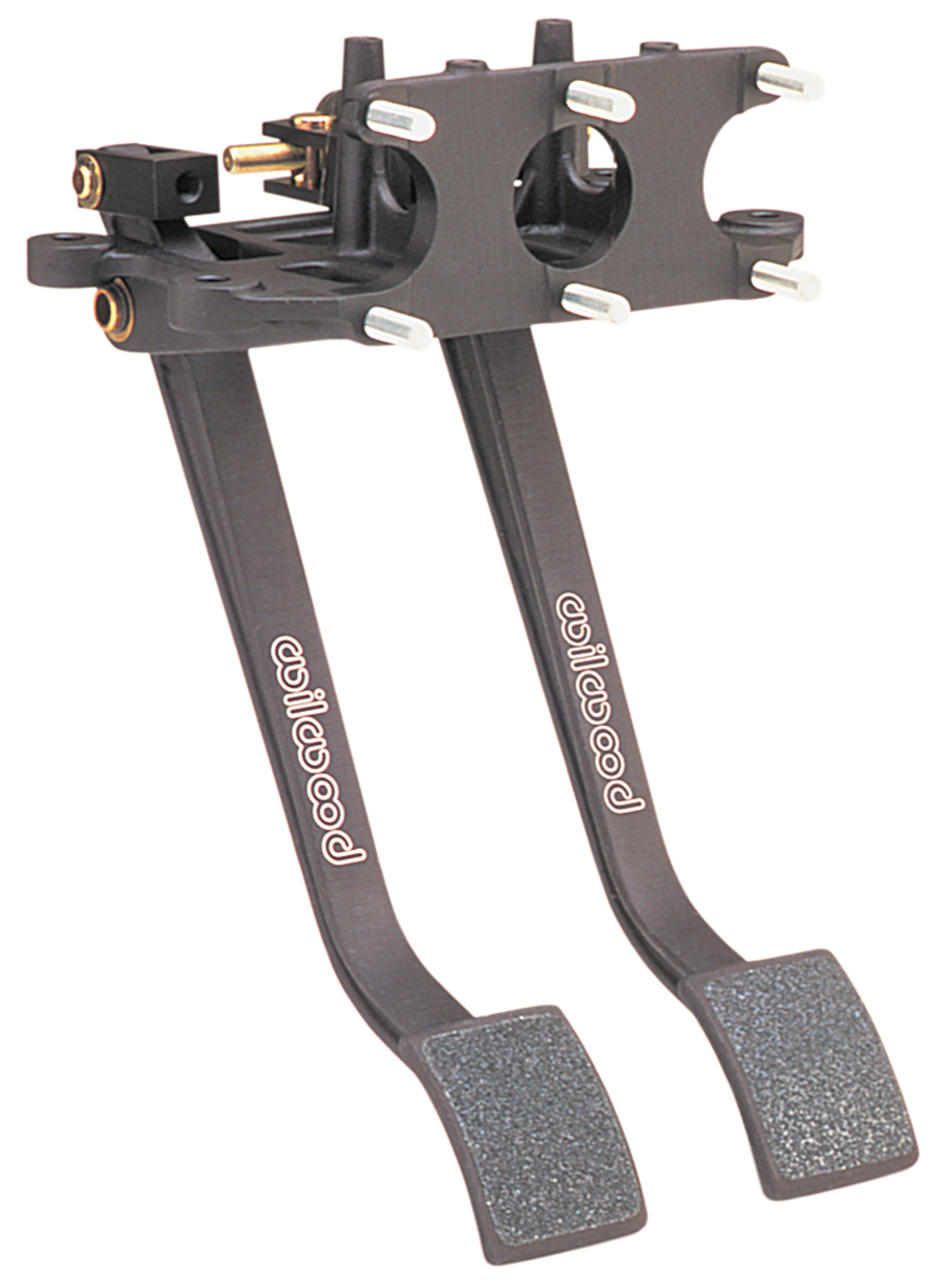

Swing Mount Brake and Clutch Pedal
Prod #: 340-3342
Price: $224.50

Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Swing
Mount Facing Reverse
Balance Bar Yes
Mount Length (in) 12.04
Pedal Ratio & Length
Pedal 1 Ratio 6.25 to 1
Pedal 2 Ratio 6.25 to 1
Pedal 1 Length (in) 11.71
Pedal 2 Length (in) 11.71
UPC Number
UPC 889545028546
Product Documents



Swing Mount Brake and Clutch Pedal - Product Description

This assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 6.25 to 1 ratio on both clutch and brake pedal.

Caution: *

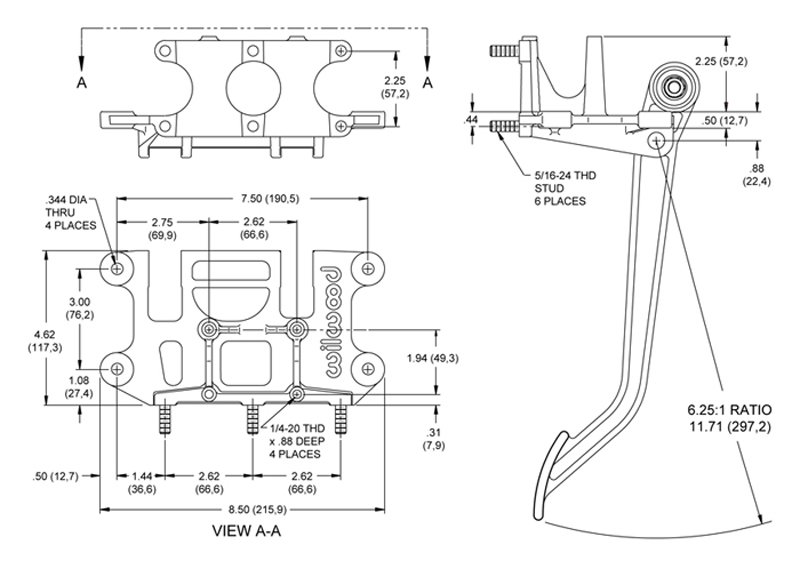

Pedal Dimensions

Superseded by forged aluminum arm adjustable pedal 340-11299 Drawing Superseded by forged aluminum arm adjustable pedal 340-11299 Drawing Zoom Image
Additional Pedal Dimensions
Mount Length (in) 12.04
Pedal 1 Length (in) 11.71
Pedal 2 Length (in) 11.71
Additional Notes

*

Additional related products:




More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
