GP320 Caliper

The Wilwood GP 3230A billet four piston caliper is a compact, high efficiency performer. Weighing just 1.70 pounds, it was purpose built as an upgrade with increased pad size over two piston calipers on lightweight open wheeled racecars. Newly updated to a dual bleeder design, the caliper can now be installed both left hand and right hand inclinations. The GP 320A is also well suited for racing applications including karts, motorcycles, mini-sprints, and formula sports racers. The GP 3230A bridge configuration will accommodate rotors between .75" and .81" thick, with overall diameters between 9.00" and 11.50".

GP200 Caliper

The GP 200 billet caliper represents the newest lightweight (only .90 pounds) caliper specifically designed for tight fit applications while utilizing a standard 2.38” lug mount. Now available (depending on part number) in either 1/8-27 NPT or a 3/8-24 fluid inlets. The GP 200 combines superior strength with a type III hard anodized finish along with several new performance features. The strength of the GP 200 is a combination of process and design. GP 200 calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a highly fortified transition between the piston housings and the bridges. Strengthening this critical area of the caliper has substantially increased its resistance to deflection and body separation under load.

GP200 Caliper

The new GP 200A billet caliper represents the lightest (only .90 pounds) caliper specifically designed for tight fit applications while utilizing a standard 2.38” lug mount. Now available (depending on part number) in either 1/8-27 NPT or a 3/8-24 fluid inlets. The GP 200A combines superior strength with a type III hard anodized finish along with several new performance features. The strength of the GP 200A is a combination of process and design. GP 200A calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a highly fortified transition between the piston housings and the bridges. Strengthening this critical area of the caliper has substantially increased its resistance to deflection and body separation under load.

GP320 Midget Front Brake Kit

The GP320 System features Wilwood’s competition proven dynamic rotor mount system, specially treated Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP320 billet caliper for the most positive and fade-free performance available for sprint racing.Component Features: GP 320 Billet Aluminum 4 Piston Calipers with Four small pistons provide balanced distribution of the pad load for improved response and longer pad wear. Super Alloy Rotors: Unlike ceramic coatings that can flake away from the base metal during high heat cycling, Wilwood’s Super Alloy material controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles without the need for recoating. Dynamic mounting with Wilwood’s t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotors stay flatter and run truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 6211-Purple Brake Pads and a rigid caliper mounting bracket with premium grade fasteners and shim washers are included for secure, deflection free mounting.

GP310 Motorcycle Rear (Sprocket Brake)

Wilwood's GP310 Motorcycle Rear Sprocket brake caliper has been designed and engineered for use on Custom Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers are available for 48 and 51 tooth applications

GP310 Motorcycle Front (2008-UP)

Wilwood's GP310 motorcycle disc brake caliper has been designed and engineered for use on 2008 to Present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models

GP310 Motorcycle Front (1984-1999)

Wilwood's GP310 motorcycle disc brake caliper has been designed and engineered for use on 1984 to 1999 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000.

GP310 Motorcycle Front (2000-2007)

Wilwood's GP310 Motorcycle disc brake caliper has been designed and engineered for use on 2000 - 2007 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models.)

GP310 Motorcycle Rear (1984-UP)

Wilwood's GP310 Rear motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers with a standard 3.50" mount spacing are available for all most models (except Springer and 4-speed FL models).

GP310 Motorcycle Rear Sprocket Brake Kit

Wilwood’s Sprocket Brake kits 140-10178 / 140-10178-P are for a 48 tooth sprocket and R/H caliper application. The sprocket-rotor bolt circle is consistent on all Harley Davidson models with a 5 x 3.25” bolt circle. The accompanying billet aluminum GP310 caliper is a 4 piston powerhouse, available in either chrome or a bright polished finish. Sprocket brake kits utilize a unique bracket design that combines the right elements of strength and style for your custom application.

GP320 Sprint Left Front Brake Kit

Wilwood’s GP320 Sprint Left Front Brake kit offers increased braking torque and thermal performance of the GP320 4 piston calipers. A definitive increase in braking and durability over traditional aluminum or steel rotor systems. Mounts are included for standard Sprint spindle to match the included 10.50 x 0.19” Super Alloy rotor. Also includes W, lightweight aluminum dynamic mount 3-pin rotor adapter and T-nut hardware kit.

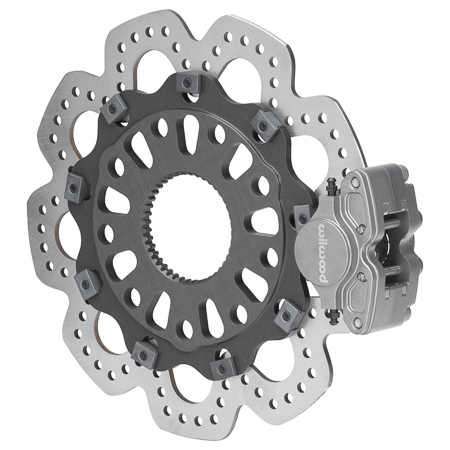

GP320 Sprint Right Rear Brake Kit

Wilwood’s GP320 Sprint Right Rear Brake kit offers increased braking torque and thermal performance of the GP320 4 piston calipers. A definitive increase in braking and durability over traditional aluminum rotor systems. Kit includes 10.50 x 0.19” Super Alloy steel rotor, Wilwood’s Purple compound brake pads, lightweight aluminum dynamic mount splined rotor adapter and T-nut hardware kit.

GP200 Left Front Sprint Brake Kit

The GP200 System features Wilwood’s competition proven Dynamic Rotor Mount system, Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP200 billet caliper for the most fade-free performance. Component features: include GP200 Billet Aluminum 2 Piston Caliper with Wilwood’s Super Alloy rotor material that controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles. Dynamic mounting with Wilwood’s t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotor stays flatter and runs truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 150-12270 Purple brake pads and a rigid caliper mounting bracket.

GP200 Sprint Right Rear Brake Kit

Wilwood’s GP200 Sprint Right Rear Brake kit offers increased braking torque and thermal performance of the GP200 2 piston calipers. A definitive increase in braking and durability over traditional aluminum rotor systems. Kit includes 10.50 x 0.19” Super Alloy steel rotor, Wilwood’s Purple compound brake pads, lightweight aluminum dynamic mount splined rotor adapter and T-nut hardware kit.

Motorcycle Rotor

6208

PAD,6208-10,GP300/310,BLACK,.300 THK

Bolt Kit-Caliper Mount

Wilwood’s Caliper Mount Bolt kit 230-10852 contains (4) 3/8-24 x 1.00” hex head bolts, (4) washers, (8) 0.035” shims and (4) 0.016" shims for mounting GP320 2 piston calipers to to brackets.

Bracket Kit, Rear - Motorcycle

Rear GP310 Motorcycle bracket kit for Harley-Davidson 48 tooth sprocket brake applications. Available in Chrome or Polished finishes. Contains mounting hardware and adjuster provisioning.

Bracket Kit, Rear - Motorcycle

Rear GP310 Motorcycle bracket kit for Harley-Davidson 51 tooth sprocket brake applications. Available in Chrome or Polished finishes. Contains mounting hardware and adjuster provisioning.

Bracket Stop

Rear GP310 Motorcycle Bracket Stop for Harley-Davidson sprocket brake applications. Un-plated, carbon steel material.

Bracket Kit, Open Wheel - Front Asphalt Midget

Wilwood’s Open Wheel Front Bracket kits are manufactured from high strength aluminum alloy, steel thread insert and black e-coat finish. Bracket 250-10534 is designed for Midget Asphalt front spindles using the GP320 4 piston caliper (PN 120-15753) and 10.50” diameter rotor.

Bracket Kit, Open Wheel - Right or Left Rear

Wilwood’s Open Wheel Right Rear Bracket kits are manufactured from high strength aluminum alloy, steel thread insert and black e-coat finish. Bracket 250-13411 is designed for Sprint Right or Left Rear to mount GP320 4 piston caliper (PN 120-15752) with a 10.50" diameter Right or Left Rear rotor (PN 160-10717)

Bracket Kit, Open Wheel - Left Front Sprint

Wilwood's Open Wheel Bracket kits are manufactured from high-strength aluminum alloy. Bracket 250-16236 is designed for Sprint car spindle using the GP320 4 piston caliper (PN 120-15752) and 10.50"x .16 diameter left front rotor (PN 160-10717).

Bracket Kit, Open Wheel - Left Front Sprint

Wilwood’s Open Wheel Left Front Bracket kits are manufactured from high strength aluminum alloy, steel thread insert and black e-coat finish. Bracket 250-16430 is designed for Sprint front spindles to mount GP200 2 piston caliper (PN 120-12178) and 10.50"x.16 diameter Left Front rotor (PN 160-10717).

Bracket Slider, Motorcycle

Remote Reservoir Mounting bracket for Combination Remote Master Cylinder reservoirs with a 1.36” nominal opening. Nylon construction.

Bracket Slider, Motorcycle

Rear GP310 Motorcycle Bracket Slider or Harley-Davidson brake applications. Aluminum construction with a chrome finish.

Bracket Slider, Motorcycle

Rear GP310 Motorcycle Bracket Slider or Harley-Davidson brake applications. Aluminum construction with a black e-coat finish.

Bracket Kit, Rear - Motorcycle

Rear GP300 Motorcycle bracket kit for Harley-Davidson 1984– 1999 Softtail applications. Available only in a Black e-coat finish. Contains mounting hardware and adjuster provisioning.

Bracket Kit, Rear - Motorcycle

Rear GP310 Motorcycle bracket kit for Harley-Davidson 2000– UP Dynaglide applications. Available in Chrome, Polished or Black e-coat finishes. Contains mounting hardware and adjuster provisioning.
