Front Brake Kit – Part No.: 140-8276
Call (805) 388-1188
Dynapro Radial Big Brake Front Brake Kit (Hat) Select Brake Kit:      Price: $937.99
*NOTE: Brake Line Kit Needed.
220-8339$66.61

Brake Kit No: 140-8276

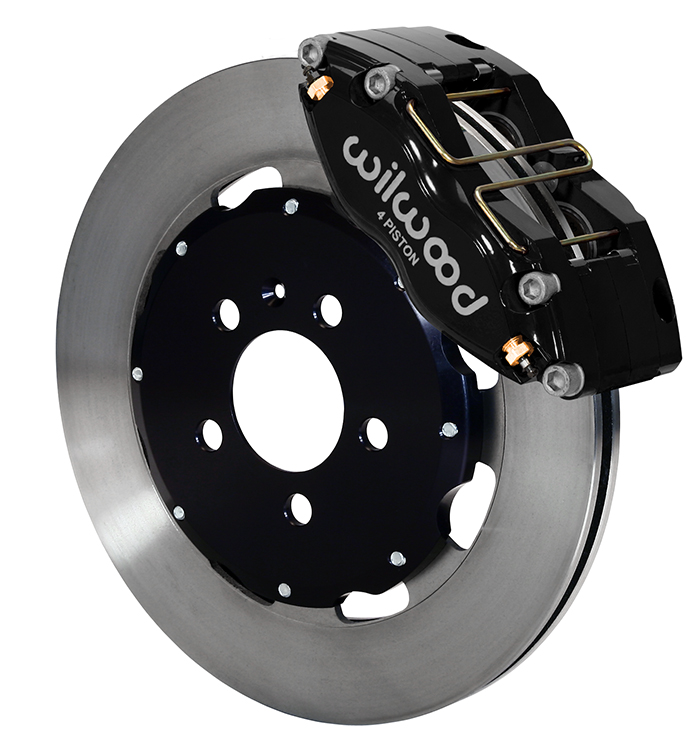

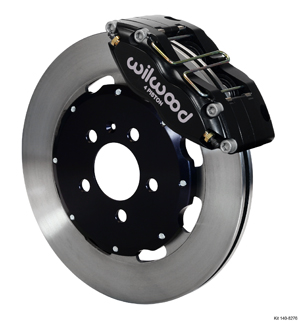

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) - Black Anodize Caliper - Plain Face Rotor

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) - Black Anodize Caliper - Plain Face Rotor
zoom image
Kit Contents:
Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Anodize Caliper - Plain Face Rotor

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Anodize Caliper - Plain Face Rotor
zoom image
Kit Summary:

Spindle Type:
Factory Disc Spindle ;
Mount Type: Radial
Caliper Type: 4 - Black Anodize
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Price: $937.99
Dynapro Radial Big Brake Front Brake Kit (Hat)

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details


Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic

Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic

Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic
zoom image
Compatible Vehicles for this Brake Kit:
BRAKE KIT:   Dynapro Radial Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes:   View All Vehicles
Audi Volkswagen

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
lookup vehicles
Search Front Brake Kits by Year-Make-Model
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Wheel Clearance: Assembly Instructions:
Wheel Clearance Diagram

Wheel Clearance Diagram
zoom image


Assembly Instructions
Note(s):
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.




Kit Components & Specifications Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No: 120-7376
Right Hand - Part No: 120-7376
Type: Dynapro Radial Mount
Finish Color: Black Anodize
Piston Count: 4
Piston Area (In²): 3.00
Piston Type: Aluminum
Mount Type: Radial
Brake Pad Plate: 7816
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 3
Pad Compound: BP-10
Dynapro Radial Mount Caliper - Black Anodize

Dynapro Radial Mount Caliper - Black Anodize
zoom image
Rotors: Info / Part Number:
Left Hand - Part No: 160-5843
Right Hand - Part No: 160-5843
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 32  - Iron - Plain

Ultralite HP 32 - Iron - Plain
zoom image
Rotor Hats: Info / Part Number:
Hat - Part No: 170-8269
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.41
Bolt Circle 1: 5 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.58
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Big Brake Hat - Short Offset - Aluminum - Black E-Coat

Big Brake Hat - Short Offset - Aluminum - Black E-Coat
zoom image
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Calipers: Info / Part Number:
O-ring Kit: 130-2658
Replacement Dustboot: 210-7210
Replacement Piston 1: 200-7319
Replacement Piston 2: 200-7319
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-7316
Bleed Screw Kit: 220-6069
Brake Line Kits: Info / Part Number:
Front Line Kit:
220-8339
Hat: Info / Part Number:
Bolt Kit: 230-8390
Hubs: Info / Part Number:
Bolt Kit:
