D154 Rear Parking Brake Kit
|
Product Number:
140-12567-D
Price:
$862.39
|
|
|
|

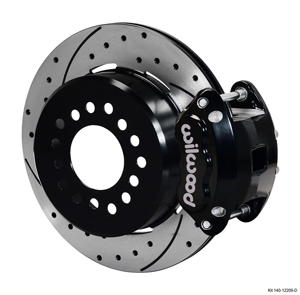

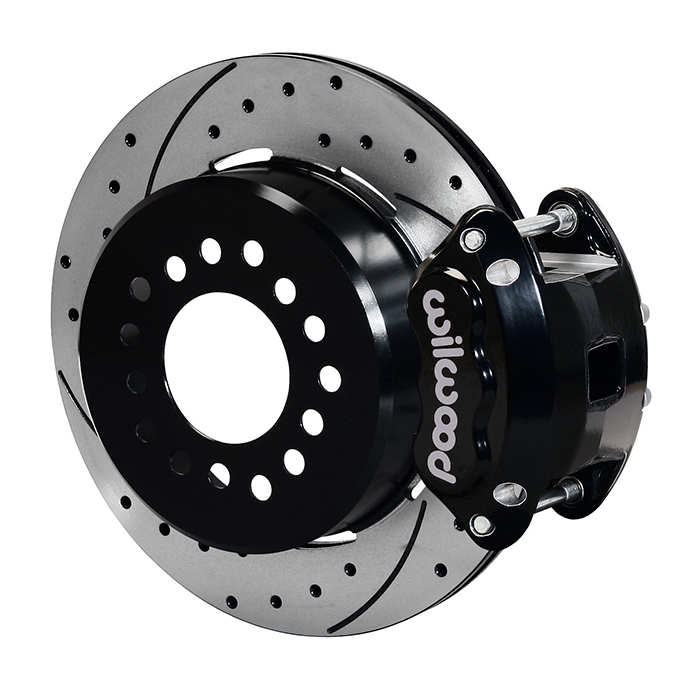

Wilwood D154 Rear Parking Brake Kit - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
Dana 35
|
|
Axle Offset:
|
|
2.56
|
|
|
Mount Type:
|
|
Floating
|
|
Caliper Type:
|
|
2 - Black Powder Coat
|
|
Rotor Diameter:
|
|
12.19
|
|
Wheel Diameter:
|
|
16
|
|
|
Price:
|
|
862.39
|
|
D154 Rear Parking Brake Kit
The D154 Pro Series rear disc conversion kit with integral parking brake provides high-tech styling for the street and rugged durability for the toughest off-road conditions. Experience big brake stopping power from 12.19” diameter rotors and two-piston floating mount calipers for ultimate control with big wheel and tire packages. This kit covers the full range of non-ABS Dana 35 rear axles used over a wide range of Jeep models and feature bolt-on installation and full compatibility with the OE master cylinder output. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE or aftermarket spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
D154 Rear Parking Brake Kit Assembly Schematic
D154 Rear Parking Brake Kit Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
|
Dana 35 Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
2.56
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
Note(s):
|
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
|
Installation Instruction Sheet:
Click To Download
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
D154 Rear Parking Brake Kit
|
REAR END:
Dana 35 - Rear Kit
AXLE OFFSET:
2.56
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
Calipers:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
120-11875-BK
|
|
Right Hand - Part No:
|
120-11875-BK
|
|
Type:
|
D154
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
2
|
|
Piston Area (In²):
|
1.98
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Floating
|
|
Brake Pad Plate:
|
D154
|
|
Brake Pad Area (In²):
|
8.7
|
|
Brake Pad Volume (In³):
|
2.9
|
|
Pad Compound:
|
BP-10
|
D154 Caliper - Black Powder Coat
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-9813-BK
|
|
Right Hand - Part No:
|
160-9812-BK
|
|
Type:
|
SRP Drilled Rotor & Hat
|
|
Style:
|
SRP Drilled & Slotted
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Iron
|
|
Outside Diameter (In.):
|
12.19
|
|
Width (In.):
|
0.81
|
|
Vane Count:
|
32 V
|
|
Design Type:
|
SRP-BLK
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
SRP Drilled Rotor & Hat - Iron - Black Electro Coat
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (In.):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
130-2579
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
200-11795
|
|
Replacement Piston 2:
|
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
|
|
Crossover Tube:
|
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
|
|
Wear Plate - Right Hand:
|
|
|
Pad Retainer:
|
|
|
Bleed Screw Kit:
|
220-0627
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
Rear Line Kit:
|
220-12630
|
|
Parking Brake Cable:
|
330-9371
|
|
|
|
