	Caliper No.: 120-10134

Dynapro 6 Piston Lug Mount Caliper

Wilwood Dynapro Six Lug Mount Caliper

Dynapro Six Lug Mount

The DP6 marks a noteworthy step in the evolution of the DynaPro caliper series. DP6 calipers offer the performance advantages of a larger pad and a six piston differential bore configuration, with complete bolt-on interchange ability to the four piston 5.25" lug mount DynaPro models, and the long standing Dynalite caliper series.

As with the previous DynaPro models, the strength of the DP6 is a combination of process and design. Premium grade alloy billets are stress-flow forged resulting in a highly efficient, high strength body. Stress flow forging re-aligns the internal grain structure of the metal within the contour of the caliper body. This process is proven to provide superior strength over any other process derived from castings or straight billet block machining. FEA assisted solid modeling design technology was employed to find the optimum balance between lightweight with superior strength against deflection and body separation under high load. Continue >>

Call (805) 388-1188

Product Number: 120-10134 Price: $299.93

Dynapro Six Lug Mount - Product Summary

Pistons

Count:

Area (in²):

Type:

Dust Boot:

3.08

Stainless

Rotor Dimensions

Rotor Width(In):

Rotor Diameter(In):

0.81

13.06

Pad Dimensions

Pad Area (in²):

Pad Volume (in³):

7.3

2.4

Mounting

Mount Center(In):

Mount Type:

Mount Side:

5.25

Lug

Right Hand

Duty Rating & Material

Material:

Weight(Lbs):

Aluminum

4.6

Colors & Finishes

Color:

Finish

Black

Black Powder Coat

Product Documents

Full Product	Product Data Sheet	Installation Instructions

Click To View	Click To Download

Vehicle Applications

Driving Environment	Vehicle Sub-Types	Application Duty
Street Rods		Heavy Duty
Street Performance	Domestic	Heavy Duty
Street Performance	Import	Heavy Duty
Rally		Medium Duty
Road Race		Medium Duty
Late Model Dirt	STARS, UMP, IMCA, etc...	Heavy Duty
Drag Racing		Heavy Duty
Northeast Modified	Dirt or Pavement	Medium Duty
Open Wheel	Sprint, Midget, etc… Dirt or Pavement	Medium Duty
Off Road		Medium Duty
Industrial		Medium Duty

Product Specifications

Rotor Compatibility

Rotor Width(In):

0.81

Maximum Rotor Width(In):

0.83

Minimum Rotor Width(In):

0.75

Maximum Rotor Diameter(In):

13.06

Minimum Rotor Diameter(In):

Brake Pad Specifications

Brake Pad Type 1:

6712

Brake Pad Type 2:

Brake Pad Type 3:

Total Pad Area (in²):

7.3

Total Pad Volume (in³):

2.4

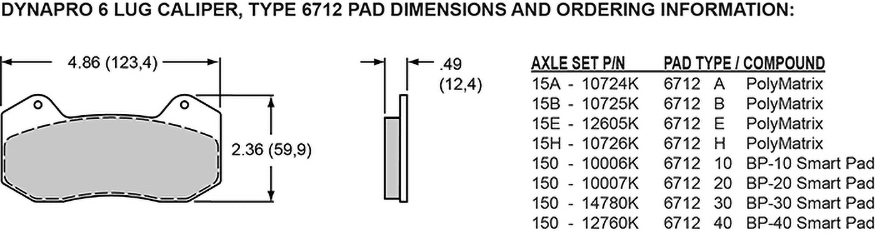

Pad Dimensions & Part Numbers

Pad Dimensions for the Dynapro Six Lug Mount

Piston Specifications

Piston 1 Bore(In):

1.38

Piston 2 Bore(In):

Piston 3 Bore(In):

Piston 4 Bore(In):

Total Piston Area (in²):

3.08

Mounting Specifications

Mount Type:

Lug

Mount Side:

Right Hand

Mount Center(In):

5.25

Mount Hole Size(In):

0.39

Mount Height(In):

2.03

Mount Dimensions & Part Numbers

Dimensions for the Dynapro Six Lug Mount

Parts & Accessories

O-Ring Kit:

130-10169

Replacement Dust Boot:

Replacement Piston 1:

200-7518

Replacement Piston 2:

200-6979

Replacement Piston 3:

200-6979

Replacement Piston 4:

Cross-Over O-Ring Kit:

130-10540

Bridge Bolt Kit:

Wear Plate L/H:

300-9707

Wear Plate R/H:

300-9707

Pad Retainer:

300-7316

Bleed Screw Kit:

220-0627

Self Bleeder Tube:

Cross-Over Tube:
