Fittings & Bleed Screws
|
|
|
Bleed Screws
|
|
Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.
|
|
| |
|

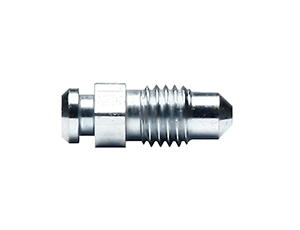

Bleed Screw
|
Part Number:
220-4269
|
|
|
Fitting Size:
|
Application(s):
|
Wilwood Calipers w/ 1/4-28 Bleeders (short)
|
|
1/4-28
|
Notes:
|
FITTING,BLEED SCREW,COMPACT
|
|
|
|
1/4-28,DWG. 1927B1M REV. D
|
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Bleed Screw
|
Part Number:
220-7496
|
|
|
Fitting Size:
|
Application(s):
|
Wilwood Calipers w/ 1/4-28 Bleeders
|
|
1/4-28
|
Notes:
|
FITTING,BLEED SCREW,INSERT
|
|
|
|
1/4-28,DWG. 0224B1M REV. M
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Bleed Screw Kit
|
Part Number:
220-0627
|
|
|
Fitting Size:
|
Application(s):
|
Wilwood Calipers w/ 1/8-27 Bleeders
|
|
1/8-27
|
Notes:
|
FITTING KIT,BLEED SCREW,4-PK
|
|
|
|
ASSY
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 4
|
|
|
|
|
|
Bleed Screw Kit
|
Part Number:
220-6069
|
|
|
Fitting Size:
|
Application(s):
|
Wilwood Calipers w/ 10mm x 1.0 Bleeders
|
|
10mm x 1.0
|
Notes:
|
BLEED SCREW,M10 x 1,METRIC
|
|
|
|
4-PK
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 4
|
|
|
|
|
|
|
|
Caliper Inlet Fitting
|
|
Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.
|
|
| |
|
Caliper Inlet Fitting
|
220-11325
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
Straight
|
|
|
Caliper Fitting Thread:
|
7/16" Banjo
|
|
Line Size:
|
Application(s):
|
Wilwood D52 Caliper
|
|
|
Note:
|
FITTING,ADAPTER,BANJO,-3 MALE
|
|
|
|
TO 7/16 HOLE
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-11565
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
Straight
|
|
|
Caliper Fitting Thread:
|
7/16" Banjo
|
|
Line Size:
|
Application(s):
|
Wilwood D52 Caliper
|
|
|
Note:
|
FITTING KIT,7/16 BOLTS,WASHERS
|
|
|
|
& BANJO -3,2 QTY
|
|
|
Weight: 0.5
|
Qty Ea: 1
Qty Per Kit: 2
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-6412
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
45 Degree
|
|
|
Caliper Fitting Thread:
|
1/8-27 NPT
|
|
Line Size:
|
Application(s):
|
Wilwwod Calipers 1/8-27 inlets
|
|
|
Note:
|
FITTING,INLET,45 DEG,ELBOW,-3
|
|
|
|
TO 1/8-27 NPT,STEEL,ZINC
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-6415
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
90 Degree
|
|
|
Caliper Fitting Thread:
|
1/8-27 NPT
|
|
Line Size:
|
Application(s):
|
Wilwwod Calipers 1/8-27 inlets
|
|
|
Note:
|
FITTING,INLET,90DEG ELBOW,-3
|
|
|
|
TO 1/8-27 NPT,STEEL,ZINC
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-6956
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
Straight
|
|
|
Caliper Fitting Thread:
|
1/8-27 NPT
|
|
Line Size:
|
Application(s):
|
Wilwwod Calipers 1/8-27 inlets
|
|
|
Note:
|
FITTING,INLET,STRAIGHT,-3 TO
|
|
|
|
1/8-27,NPT,STEEL,ZINC
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-10416
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
Banjo 0 De
|
|
|
Caliper Fitting Thread:
|
10mm Banjo
|
|
Line Size:
|
Application(s):
|
Wilwwod CPB Caliper
|
|
|
Note:
|
FITTING,BANJO,-3 MALE TO 10mm
|
|
|
|
.388-.425 MOUNT
|
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-9075
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
Straight
|
|
|
Caliper Fitting Thread:
|
1/8-27 NPT
|
|
Line Size:
|
Application(s):
|
Wilwwod Calipers 1/8-27 inlets
|
|
|
Note:
|
FITTING,INLET,STRAIGHT,-4 TO
|
|
|
|
1/8-27 NPT,STEEL,ZINC
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Caliper Inlet Fitting
|
220-9924
|
|
|
Fitting Size:
|
Caliper Fitting Angle:
|
90 Degree
|
|
|
Caliper Fitting Thread:
|
1/8-27 NPT
|
|
Line Size:
|
Application(s):
|
Wilwwod Calipers 1/8-27 inlets
|
|
|
Note:
|
FITTING,90DEG ELBOW,-4 AN MALE
|
|
|
|
TO 1/8-27 NPT MALE,STEEL,ZINC
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
|
|
Chassis Fitting
|
|
Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.
|
|
| |
|

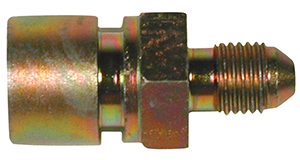

Chassis Fitting
|
Part Number:
220-6410
|
|
|
Chassis Fitting Size:
|
-3 to 3/8-24 IF
|
|
Application(s):
|
Universal Chassis Fitting
|
|
Notes:
|
FITTING,ADAPTOR,TUBING,-3 TO
|
|
|
3/8-24 IF,STEEL,ZINC
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Chassis Fitting
|
Part Number:
220-6413
|
|
|
Chassis Fitting Size:
|
-3 to M10 x 1 IF
|
|
Application(s):
|
Universal Chassis Fitting
|
|
Notes:
|
FITTING,ADAPTOR,TUBING,-3 TO
|
|
|
M10 x 1.0 IF,STEEL,ZINC
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Chassis Fitting
|
Part Number:
220-6457
|
|
|
Chassis Fitting Size:
|
-3 to 7/16-24 IF
|
|
Application(s):
|
Universal Chassis Fitting
|
|
Notes:
|
FITTING,ADAPTOR,TUBING,-3 TO
|
|
|
7/16-24 IF,STEEL,ZINC
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Chassis Fitting
|
Part Number:
220-6890
|
|
|
Chassis Fitting Size:
|
-3 to M10 x 1 BF
|
|
Application(s):
|
Universal Chassis Fitting
|
|
Notes:
|
FITTING,ADAPTOR,TUBING,-3 TO
|
|
|
M10 x 1.0,STEEL,ZINC
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
Chassis Fitting
|
Part Number:
220-9076
|
|
|
Chassis Fitting Size:
|
-4 to 7/16-24 IF
|
|
Application(s):
|
Universal Chassis Fitting
|
|
Notes:
|
FITTING,ADAPTOR,TUBING,-4 TO
|
|
|
7/16-24 IF,STEEL,ZINC
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
|
|
M/C Fitting
|
|
Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.
|
|
| |
|
M/C Fitting
|
Part Number:
220-0628
|
|
|
Fitting Size:
|
3/8-24 IF to 1/8-27
|
|
Application(s):
|
Willwood Master Cylinder or Calipers to 3/8-24 IF
|
|
Notes:
|
FITTING KIT,TUBE ADAPTER,4-PK
|
|
|
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 4
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-3406
|
|
|
Fitting Size:
|
-3 to 3/8-24
|
|
Application(s):
|
Compact Remote Master Cyl
|
|
Notes:
|
FITTING,ADAPTER,3/8-24 x-3 JIC
|
|
|
3/16 HOSE END
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-3407
|
|
|
Fitting Size:
|
3/8-24 IF to 3/8-24
|
|
Application(s):
|
Compact Remote Master Cyl
|
|
Notes:
|
FITTING,TUBE,ADAPTER,3/16 x
|
|
|
3/8-24,INVERTED FLARE
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-5247
|
|
|
Fitting Size:
|
3/16 x 1/2-20
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,TUBE,ADAPTER,3/16 X
|
|
|
1/2-20,TANDEM M/C,SILVER
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-5248
|
|
|
Fitting Size:
|
3/16 x 9/16-20
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,TUBE,ADAPTER,3/16 X
|
|
|
9/16-20,TANDEM M/C,GOLD
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-7534
|
|
|
Fitting Size:
|
-6 to 3/8 Hose
|
|
Application(s):
|
Compact Remote Master Cyl
|
|
Notes:
|
FITTING,STRAIGHT,-6 SWIVEL TO
|
|
|
3/8 HOSE BARB,ALUM
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-7537
|
|
|
Fitting Size:
|
-6 to 7/16-20
|
|
Application(s):
|
Compact Remote Master Cyl
|
|
Notes:
|
FITTING,ADAPTER,-6 JIC TO
|
|
|
7/16-20,MALE,ALUM
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-8574
|
|
|
Fitting Size:
|
1/2-20 to 1/2-20
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,TUBE,ADAPTER,1/2-20 X
|
|
|
1/2-20 IF,DWG 4680B1M REV. F
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-8575
|
|
|
Fitting Size:
|
1/2-20 x 9/16-18
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,TUBE,ADAPTER,1/2-20 X
|
|
|
9/16-18 IF,DWG 4680B1M REV. F
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-8576
|
|
|
Fitting Size:
|
1/2-20 Plug
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,PLUG,1/2-20,HEX,M/C
|
|
|
TANDEM,DWG. 4681B1M REV. C
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
M/C Fitting
|
Part Number:
220-8849
|
|
|
Fitting Size:
|
1/2-20 to 3/8-24 IF
|
|
Application(s):
|
Tandem Master Cylinder
|
|
Notes:
|
FITTING,TUBE,ADAPTER,1/2-20 X
|
|
|
3/8-24 IF,DWG. 4863B1M REV. C
|
|
Weight: 0.1
|
Qty Ea: 1
Qty Per Kit: 2
|
|
|
|
|
|
|
|
Pressure Gauge Fitting
|
|
Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.
|
|
| |
|
Pressure Gauge Fitting
|
Part Number:
220-0971
|
|
|
Fitting Size:
|
1/8-27 NPT to 1/4-28
|
|
Application(s):
|
Wilwood Quick Check Gauge
|
|
Notes:
|
FITTING,ADAPTER,PRESSURE GAUGE
|
|
|
TO CALIPER,DWG. 0227B1M REV. D
|
|
Weight: 0.2
|
Qty Ea: 1
Qty Per Kit: 1
|
|
|
|
|
|
