Name: Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)
Brand: Wilwood
Availability: InStock

Front Brake Kit – Part No: 140-13344-DR

Call (805) 388-1188

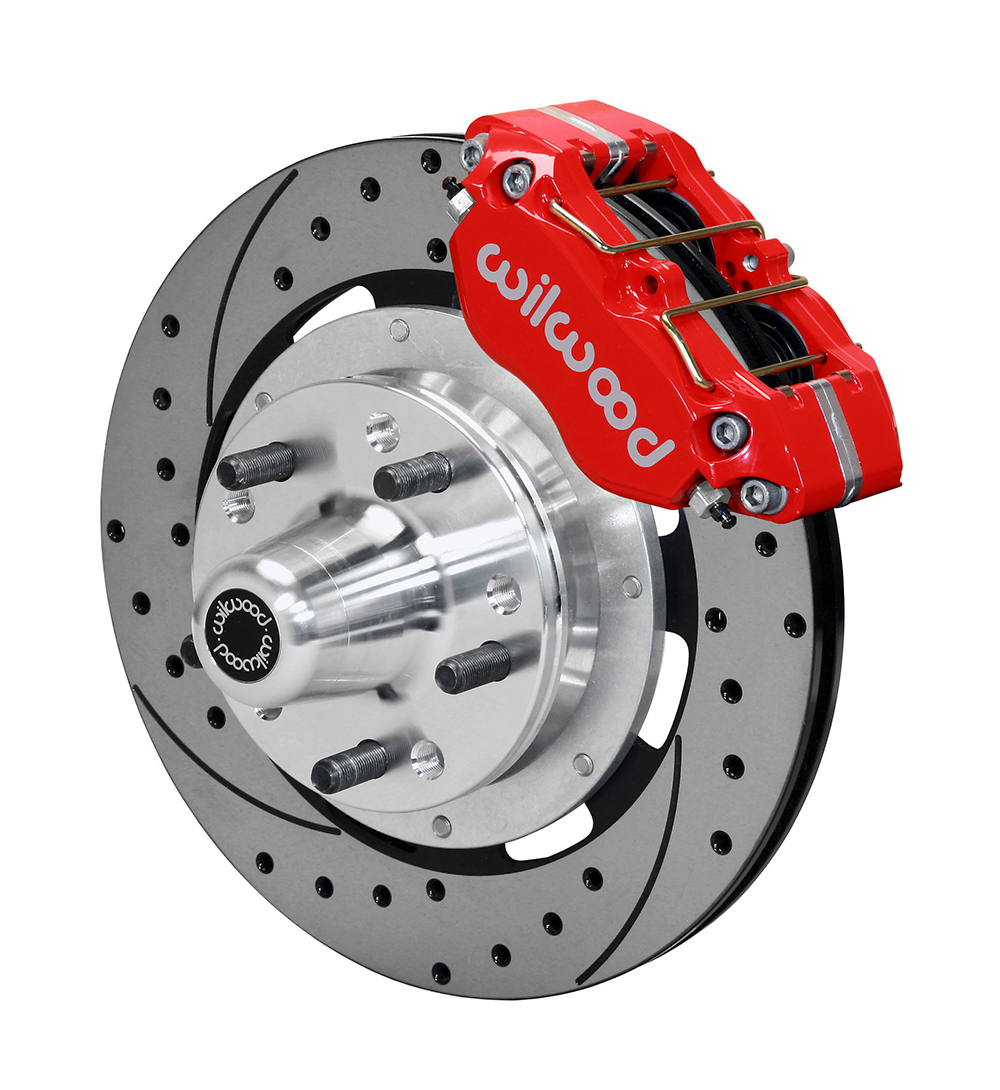

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)

Prod #: 140-13344-DR

Price: $1,500.72

Available Brake Kit #140-13344 Configurations

140-13344
Black Calipers
12.19-inch Rotors
Undrilled Rotors

140-13344-D
Black Calipers
12.19-inch Rotors
Drilled & Slotted Rotors

140-13344-DR
Red Calipers
12.19-inch Rotors
Drilled & Slotted Rotors

140-13344-R
Red Calipers
12.19-inch Rotors
Undrilled Rotors

*Line Kit Needed

220-12168
$110.61

Available Brake Kit #140-13344 Configurations

140-13344
Black Calipers
12.19-inch Rotors
Undrilled Rotors

140-13344-D
Black Calipers
12.19-inch Rotors
Drilled & Slotted Rotors

140-13344-DR
Red Calipers
12.19-inch Rotors
Drilled & Slotted Rotors

140-13344-R
Red Calipers
12.19-inch Rotors
Undrilled Rotors

*Line Kit Needed

220-12168
$110.61

Front Brake Kit — 140-13344-DR

Kit Contents

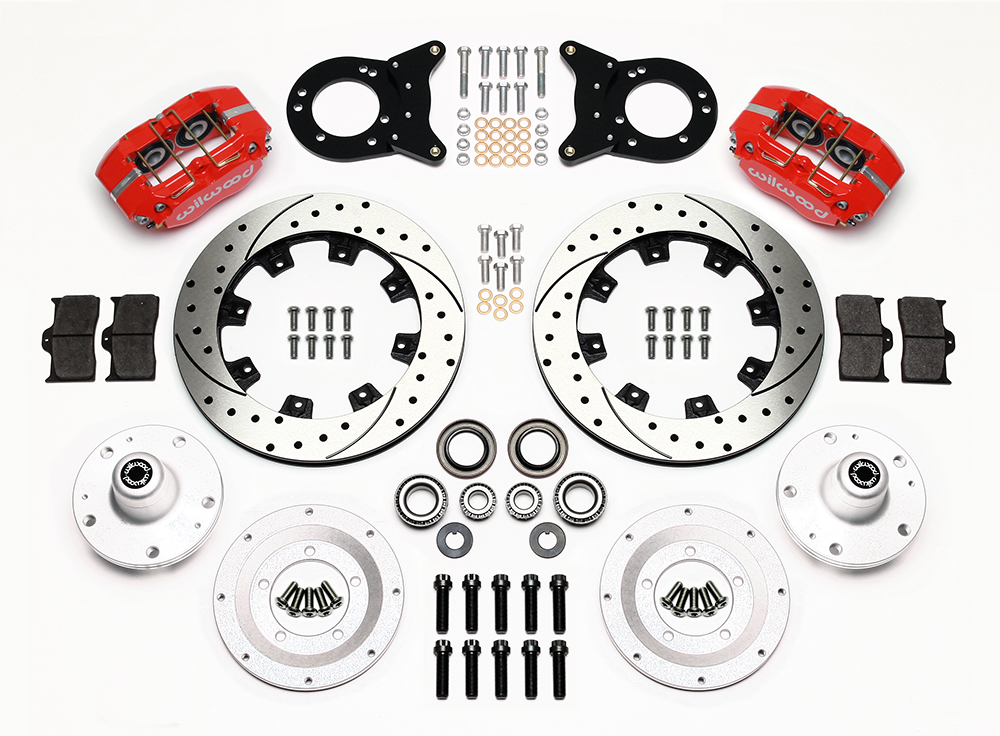

Wilwood Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary
OE Hub Offset:	+.09
(Increase / Decrease Track Width)
Spindle Type:	Factory Disc Spindle Factory Drum Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Rotor Diameter:	12.19
Min Wheel Diameter Req'd*:	15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545020106

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high-performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Fitment & Installation Details

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) Assembly Schematic

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) Assembly Schematic Zoom Image

Compatible Vehicles for this Brake Kit

BRAKE KIT: Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)

SPINDLE TYPE:

Factory Disc Spindle;

Factory Drum Spindle ;

This Brake Kit is Compatible with the Following Vehicle Makes: Ford Mercury

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles

Caution
	THIS BRAKE KIT HAS A HUB OFFSET OF: +.09 This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram Click Image to Close	Assembly Instructions

Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-11482-RD
Right Hand - Part No:	120-11482-RD
Type:	Dynapro Dust-Boot
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Aluminum
Mount Type:	Lug
Brake Pad Plate:	7812
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Dynapro Dust-Boot Caliper - Red Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-7104-BK
Right Hand - Part No:	160-7103-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	12.19
Width (in):	0.81
Vane Count:	32 V
Design Type:	SRP-BLK
Burnished:	No
Dynamically Balanced:	No
SRP Drilled Rotor - Iron - Black Electro Coat Click Image to Close

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:	270-11058
Type:	Hub - Vented Rotor Offset
Material:	Aluminum
Finish Color:	Bare
Mount Style:	Adapter
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1:	1/2-20
Stud Diameter - BC 2:	1/2-20
Stud Diameter - BC 3:
Hub - Vented Rotor Offset - Aluminum - Bare Click Image to Close

Parts & Accessories

Caliper Parts
O-ring Kit:	130-2655
Replacement Dustboot:	210-7210
Replacement Piston 1:	200-11484
Replacement Piston 2:	200-11484
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	300-9636
Bleed Screw Kit:	220-0627

*Brake Lines Needed
Front Line Kit:	220-12168

Hat
Bolt Kit:

Hub
Bolt Kit:
