MC4 Mechanical Caliper – Part No: 120-12070-BK
Call (805) 388-1188
MC4 Mechanical
Prod #: 120-12070-BK
Price: $113.93
MC4 Mechanical - Product Summary
Caliper No: 120-12070-BK

Pistons
Piston Count 1
Piston Area (in²) 1.19
Piston Type Aluminum
Dust Boot Yes
Rotor Dimensions
Rotor Width(in) 0.81
Rotor Diameter(in) 12.88
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Aluminum
Weight(Lbs) 3.3
Colors & Finish
Color Black
Finish Black Powder Coat

Mounting
Mount Center(in) 3
Mount Position
Mount Side Left Hand
Mount Type Floating
Product Documents
Product Data Sheet

Click To Download
Installation Instructions

120-12070-BK - Product Description

MC4 Mechanical

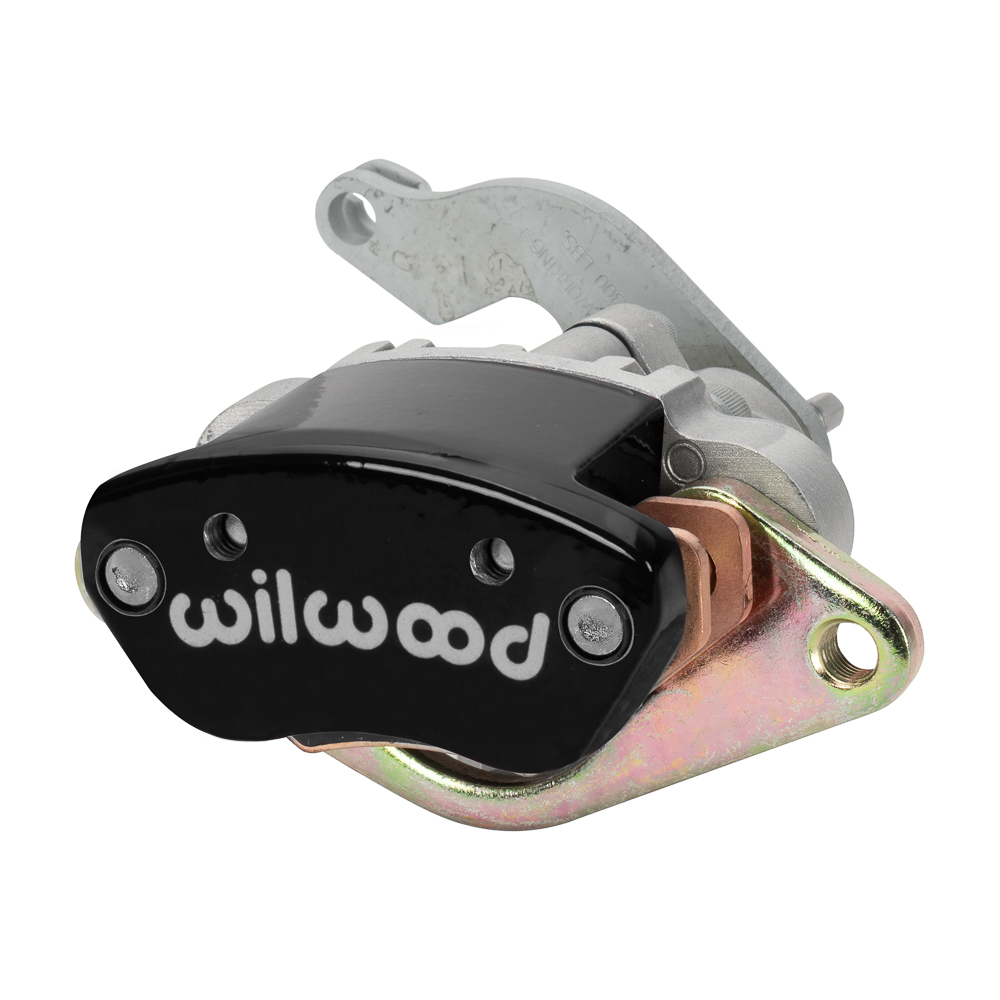

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

Engineered with noise-dampening features for quiet, rattle-free operation, the MC4 sliding caliper includes a steel bracket for convenient mounting. Available in both right-hand and left-hand construction, the caliper’s lever cartridge can be clocked in three positions for optimum positioning and ease of cable routing. The 1.19” aluminum piston is fully dust booted to keep moisture and debris out. Each caliper is fitted with a cable return spring, and the mechanical lever accepts a .310” diameter barrel-ended parking brake cable*. The convenient manual adjuster requires no special tools, allowing incremental adjustment to compensate for pad and rotor wear. MC4 calipers are available with either black, silver or red high-gloss, high-temp, brake fluid resistant powder coat and feature Wilwood’s signature logo.



Product Specifications

Rotor Compatibility
Rotor Width(in) 0.81
Maximum Rotor Width(in) 0.81
Minimum Rotor Width(in) 0.7
Maximum Rotor Diameter(in) 12.88
Minimum Rotor Diameter(in) 11

Brake Pad Specifications
Brake Pad Type 1 6407
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 1.7
Total Pad Volume (in³) 0.26
Mount
Piston Specifications
Piston 1 Bore(in) 1.19
Piston 2 Bore(in
Piston 3 Bore(in)
Piston 4 Bore(in)
Total Piston Area (in²) 1.19

Mounting Specifications
Mount Type Floating
Mount Side Left Hand
Mount Center(in) 3
Mount Hole Size(in) 0.67
Mount Height(in)
Inlet Thread Size N-A
Pad Dimensions & Part Numbers
Mount Dimensions & Part Numbers

Additional Notes


Parts & Accessories

O-Ring Kit 130-4320
Replacement Dust Boot 210-6391
Replacement Piston 1 200-8660
Replacement Piston 2 N-A
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit N-A
Bridge Bolt Kit N-A
Wear Plate L/H N-A
Wear Plate R/H N-A
Pad Retainer N-A
Bleed Screw Kit N-A
Self Bleeder Tube N-A
Cross-Over Tube N-A
