Dynalite Single Caliper – Part No: 120-4062
Call (805) 388-1188
Billet Dynalite Single
Prod #: 120-4062
Price: $125.03

Billet Dynalite Single - Product Summary

Pistons
Piston Count 2
Piston Area (in²) 2.40
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width(in) 0.38
Rotor Diameter(in) 13
Pad Dimensions
Pad Area (in²) 3
Pad Volume (in³) 1.1
Duty Rating & Material
Material Aluminum
Weight(Lbs) 1.8
Colors & Finish
Color Black
Finish Black Anodize

Mounting
Mount Center(in) 3.25
Mount Position
Mount Side Universal
Mount Type Lug
Product Documents
Product Data Sheet

Installation Instructions


120-4062 - Product Description

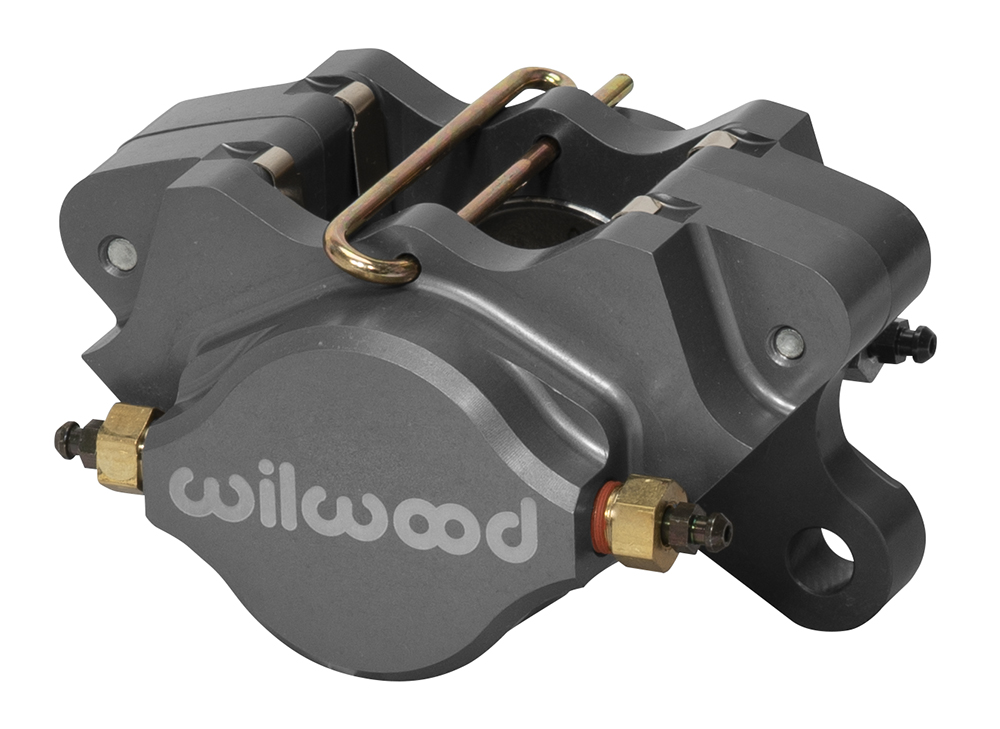

Billet Dynalite Single

Wilwood’s Billet Dynalite Single utilizes close tolerance design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.58 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications.

The two piston caliper is rigid, lightweight and holds a .49” thick, 1.1 cubic inch brake pad. Internal fluid passage and multiple bleed fittings permit right or left, front or rear mounting options with either 3.25” or 3.75” lug spacing, and will fit .25” to .38” thick rotors with diameters from 6.00” to 13.00”. High temperature square piston seals control piston retraction while the stainless steel deep cup pistons reduce heat transfer from the pad to the brake fluid. Calipers accept 1/8-27 NPT inlet fitting and come standard with our exclusive re-usable pad retainer clip.

The Billet Dynalite Single comes standard with our black anodized coating, but is more spectacular in the brilliant polished version (shown at right) for a show car look. The machining versatility of our CNC equipment sculpts a part that enhances wheel and suspension detail while maintaining the close tolerance design attributes of the Dynalite Single Series.


Vehicle Applications
Driving Environment Junior Dragster
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Street Rods
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Street Performance
Vehicle Sub-Types Domestic
Application Duty Light Duty
Driving Environment Street Performance
Vehicle Sub-Types Import
Application Duty Light Duty
Driving Environment Motorcycles
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Road Race
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Drag Racing
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Northeast Modified
Vehicle Sub-Types Dirt or Pavement
Application Duty Light Duty
Driving Environment Open Wheel
Vehicle Sub-Types Sprint, Midget, etc… Dirt or Pavement
Application Duty Light Duty
Driving Environment Off Road
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Kart
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Power Sports
Vehicle Sub-Types ATV, Snowmobile
Application Duty Heavy Duty

Product Specifications

Rotor Compatibility
Rotor Width(in) 0.38
Maximum Rotor Width(in) 0.38
Minimum Rotor Width(in) 0.25
Maximum Rotor Diameter(in) 13
Minimum Rotor Diameter(in) 6

Brake Pad Specifications
Brake Pad Type 1 6812
Brake Pad Type 2 7012
Brake Pad Type 3 N-A
Total Pad Area (in²) 3
Total Pad Volume (in³) 1.1
Mount
Piston Specifications
Piston 1 Bore(in) 1.75
Piston 2 Bore(in
Piston 3 Bore(in)
Piston 4 Bore(in)
Total Piston Area (in²) 2.40

Mounting Specifications
Mount Type Lug
Mount Side Universal
Mount Center(in) 3.25
Mount Hole Size(in) 0.39
Mount Height(in) 1.92
Inlet Thread Size 1/8-27 NPT
Pad Dimensions & Part Numbers
Mount Dimensions & Part Numbers

Additional Notes

Wilwood’s unique Thermlock® T1 Short Track Pistons is an optional feature on our Billet Dynalite calipers. The pistons incorporate a stainless steel shield and coated aluminum shell configuration to provide a highly efficient thermal barrier between the brake pads and the caliper body, seals, and fluid. Lower operating temperatures eliminate seal crystallization and localized fluid boiling while providing longer caliper service life through decreased distortion in the caliper body and piston bores.


Parts & Accessories

O-Ring Kit 130-2655
Replacement Dust Boot N-A
Replacement Piston 1 200-7528
Replacement Piston 2 N-A
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit 130-10540
Bridge Bolt Kit N-A
Wear Plate L/H 300-5875
Wear Plate R/H 300-5875
Pad Retainer 180-3862
Bleed Screw Kit 220-0627
Self Bleeder Tube N-A
Cross-Over Tube N-A
