Hub No: 270-6735C

Call (805) 388-1188
Wide 5 - Starlite 55
Prod #: 270-6735C
Price: $199.15

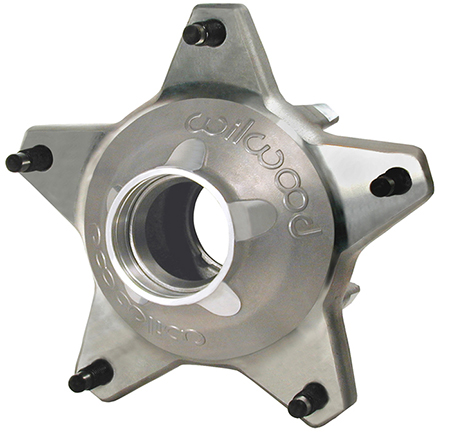

Wilwood Wide 5 - Starlite 55 Wilwood Wide 5 - Starlite 55 Zoom Image

Wide 5 - Starlite 55 - Product Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 7.3
UPC Number
UPC 889545069006
Rotor Compatibility
Rotor Mount Bolt Circle (in) 8 x 7.00
Rotor Offset Type STD Offset
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Direct
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 5 x 10.25
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 5/8-11
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Wide 5 Front Hub
  • Coarse Wheel Studs
  • NOTE: See Product Data Sheet for torque specs

  • Vehicle Applications
    Driving Environment Road Race
    Vehicle Sub-Types
    Application Duty Medium Duty
    Driving Environment Late Model Asphalt
    Vehicle Sub-Types ASA, All Pro, SW Tour, etc...
    Application Duty Heavy Duty
    Driving Environment Stock Cars
    Vehicle Sub-Types NASCAR, BGN, CTS, ARCA, etc...
    Application Duty Medium Duty
    Driving Environment Late Model Dirt
    Vehicle Sub-Types STARS, UMP, IMCA, etc...
    Application Duty Heavy Duty
    Driving Environment Northeast Modified
    Vehicle Sub-Types Dirt or Pavement
    Application Duty Heavy Duty
    Driving Environment Off Road
    Vehicle Sub-Types
    Application Duty Heavy Duty

    Hub Dimensions

    Wide 5 - Starlite 55 Drawing Wide 5 - Starlite 55 Drawing Zoom Image
    Hub Dimensions (in)
    Dim A 3.570 Dim N 2.930
    Dim D 3.480 Dim P
    Dim H 2.650 Dim Q
    Dim M 4.600

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-0431
    Inner Bearing Set - BCA#: N-A
    Outer Bearing 370-0432
    Outer Bearing Set - BCA#: N-A
    Inner Hub Bearing - Race 370-0314
    Outer Hub Bearing - Race 370-0315
